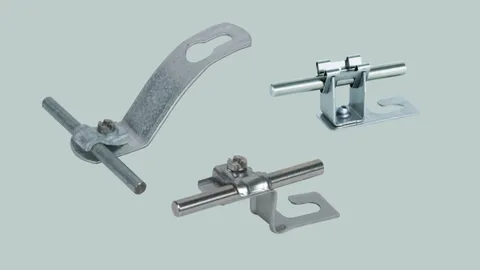

Metal Roof / Corrugated Sheet Roofing – Roof Conductor Holders

For fixing additional air-termination systems on metal roofs.
When using two roof conductor holders (clamps / clamping pieces) which have been tested for the respective roof profile, a lightning current carrying capability of 100 kA (10/350 µs) is provided.

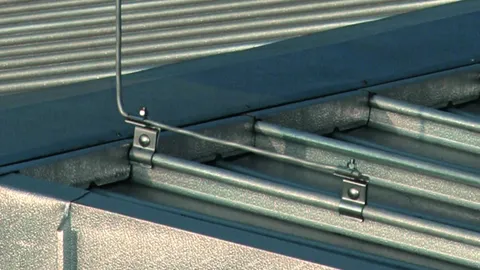

For installing air-termination systems, e.g. on trapezoidal roofs.
The conductor holder can be used on smooth (unstructured) surfaces such as metal roofs / metal surfaces. The conductor holders are stuck to the roof (remove protective backing).

For installing ridge conductors and conductors on the roof surface.
Corrugations 177 mm (profile 5) and 130 mm (profile 8).
