BUStector

用于KNX / EIB总线的电涌保护器
KNX / EIB总线的端子设计，节省空间
具有EIBA认证

Details

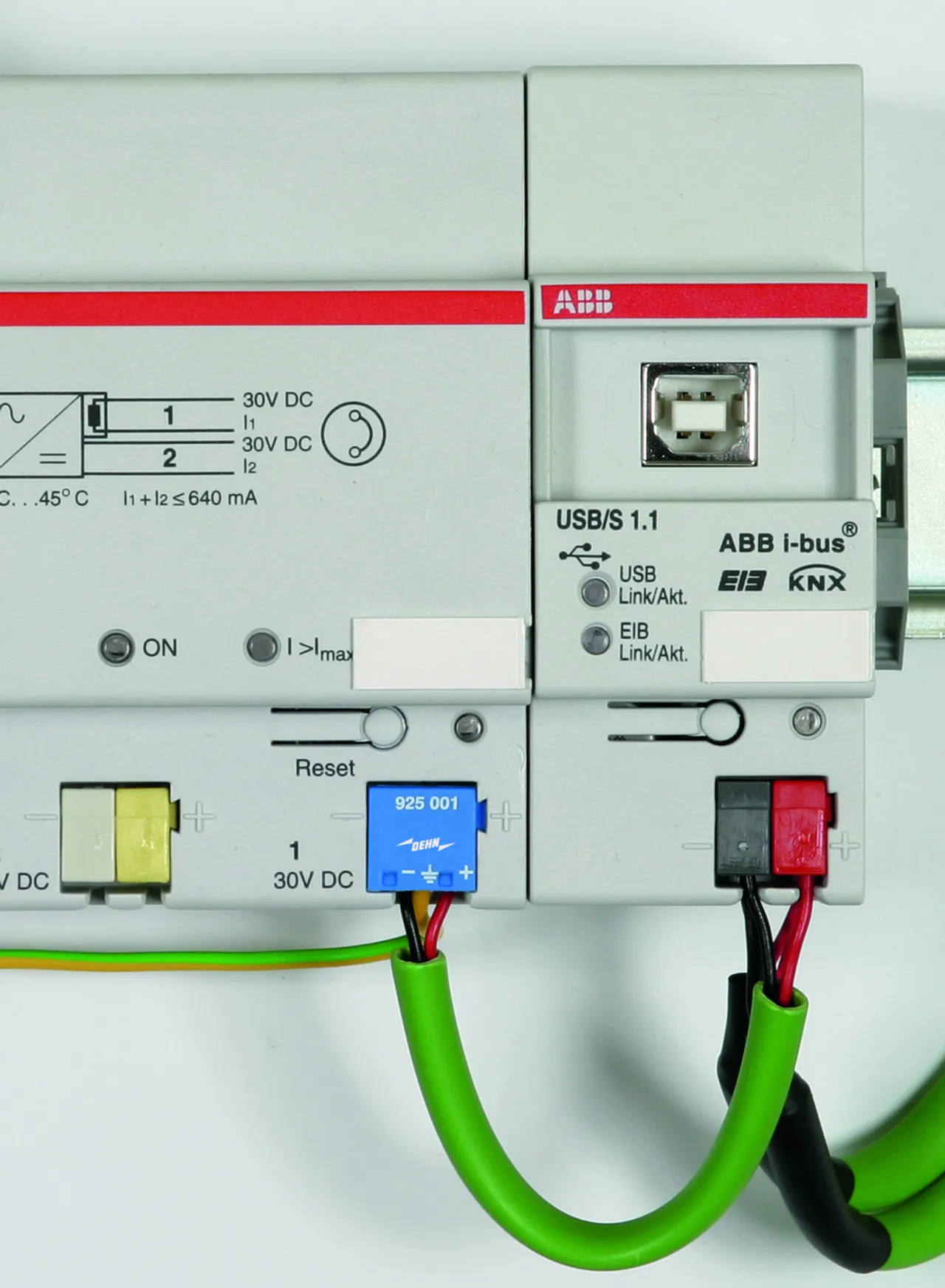

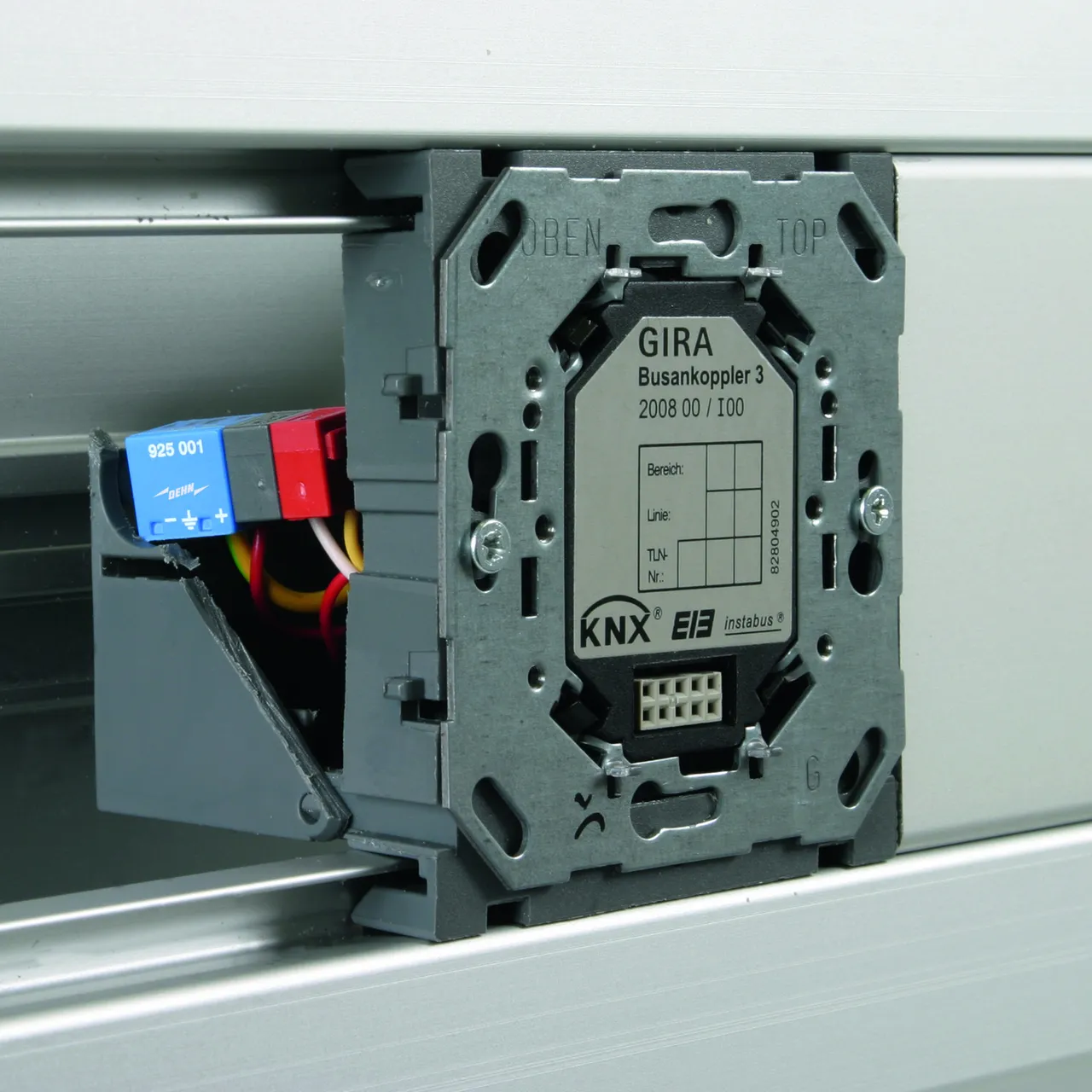

lorem ipsum — BUStector保护的KNX供电单元，安装在总线终端接线槽内。

BT

带有总线端子的电涌保护器，适用于KNX / EIB系统。具有EIBA认证。

1 Product

Part No. 925001 BT 24

GTIN 4013364047365, Customs tariff No. (EU): 853630, Gross weight: 10.10 g, PU: 1.00 件

Images

Additional information

CAD files

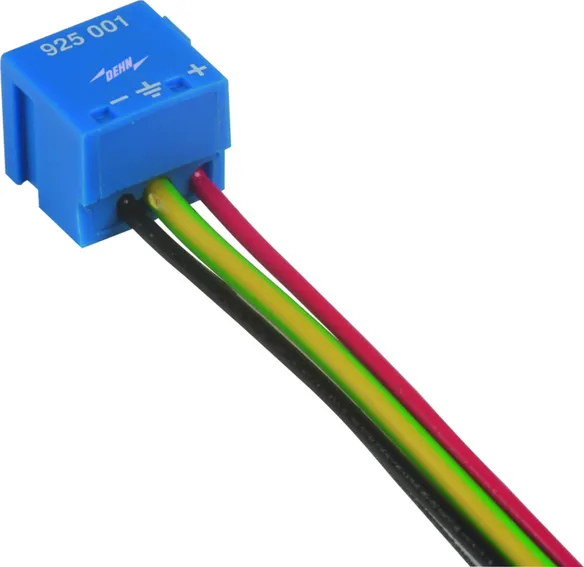

BT 24 带总线端子的电涌保护器
BUStector电涌保护器
依据EN 61643-21，2级SPD,
适用于KNX / EIB系统，
带有总线端子，
具有EIBA认证
直流最大持续工作电压: 45 V
C2 每线标称放电电流 (8/20 μs): 5 kA

制造商： DEHN
型号: BT 24
货号: 925001
其他类似产品

Certificates

Technical data

SPD分类	B
直流最大持续工作电压 (U_C )	45 V
标称电流 (I_L )	6 A
D1 每线雷电冲击电流 (10/350 μs)	1 kA
C2 每线标称放电电流 (8/20 μs) (I_n )	5 kA
截止频率 (线-线) (f_G )	70 MHz
认证	EIBA-Zertifizierung Nr. Z 32/1399/95

SPD分类	B
标称电压 (U_N )	24 V
直流最大持续工作电压 (U_C )	45 V
标称电流 (I_L )	6 A
D1 每线雷电冲击电流 (10/350 μs)	1 kA
C2 每线标称放电电流 (8/20 μs) (I_n )	5 kA
电压保护水平 I_n C2 (线-线) (U_P )	≤ 1200 V
电压保护水平 I_n C2 (线-PG) (U_P )	≤ 650 V
电压保护水平 1 kV/μs C3 (线-线) (U_P )	≤ 750 V
电压保护水平 1 kV/μs C3 (线-PG) (U_P )	≤ 500 V
截止频率 (线-线) (f_G )	70 MHz
电容 (线-线)	≤ 10 pF
电容 (线-PG)	≤ 10 pF
工作温度范围 (T_U )	-40 °C ... +80 °C
防护等级	IP 20
接线方式	弹簧端子 Ø1 mm / 连接线 Ø0.8 mm
接地方式	导线0.75 mm² , 长200 mm
外壳材质	热塑性材料
颜色	蓝色
测试标准	IEC 61643-21
认证	EIBA-Zertifizierung Nr. Z 32/1399/95
