型钢安装的屏蔽连接

  • 通过10kA (10/350 μs) 的雷电冲击电流测试
  • 不锈钢材质，耐腐蚀
  • 弹簧元件确保持久的屏蔽连接

Details

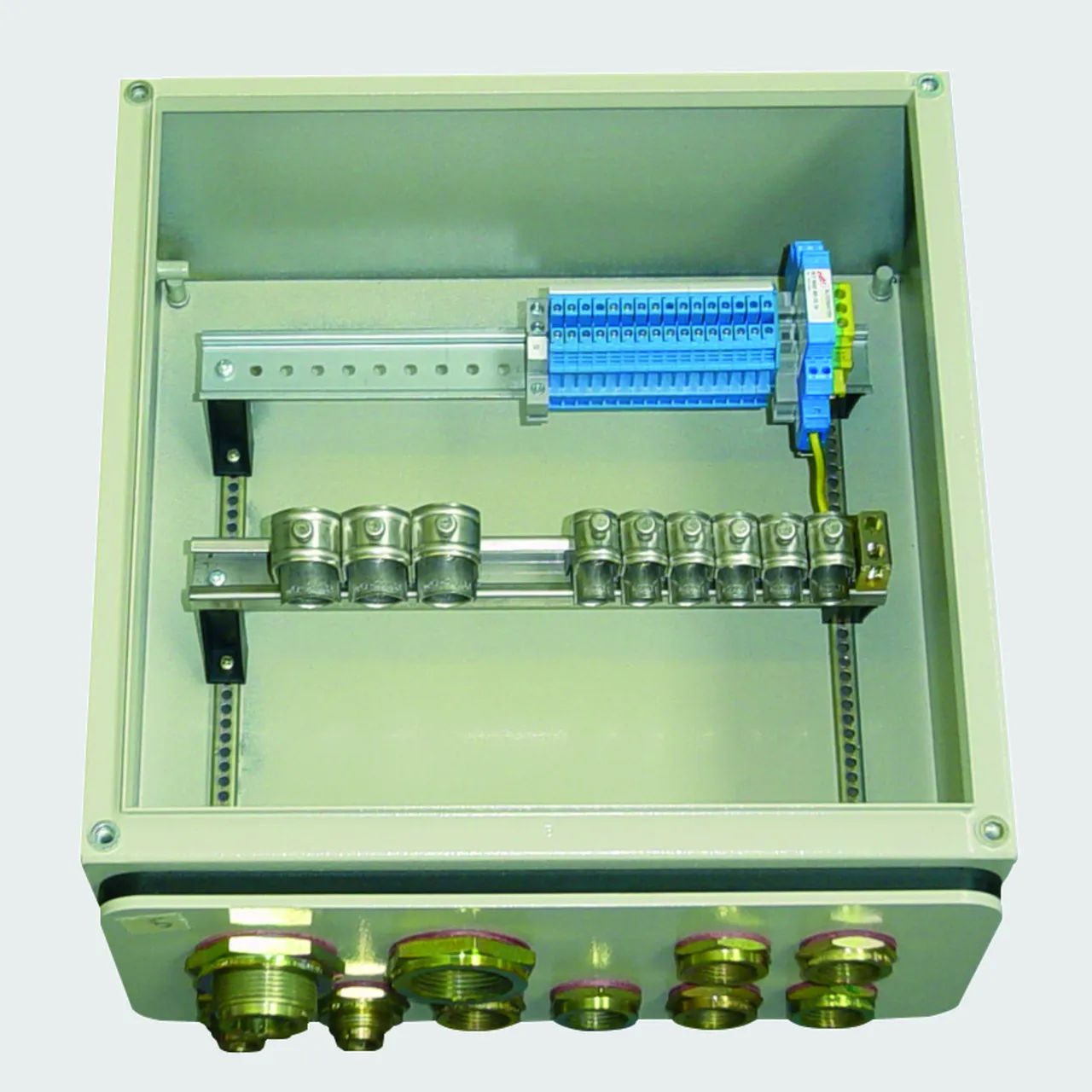

用于型钢安装的屏蔽连接装置
lorem ipsum

屏蔽连接端子

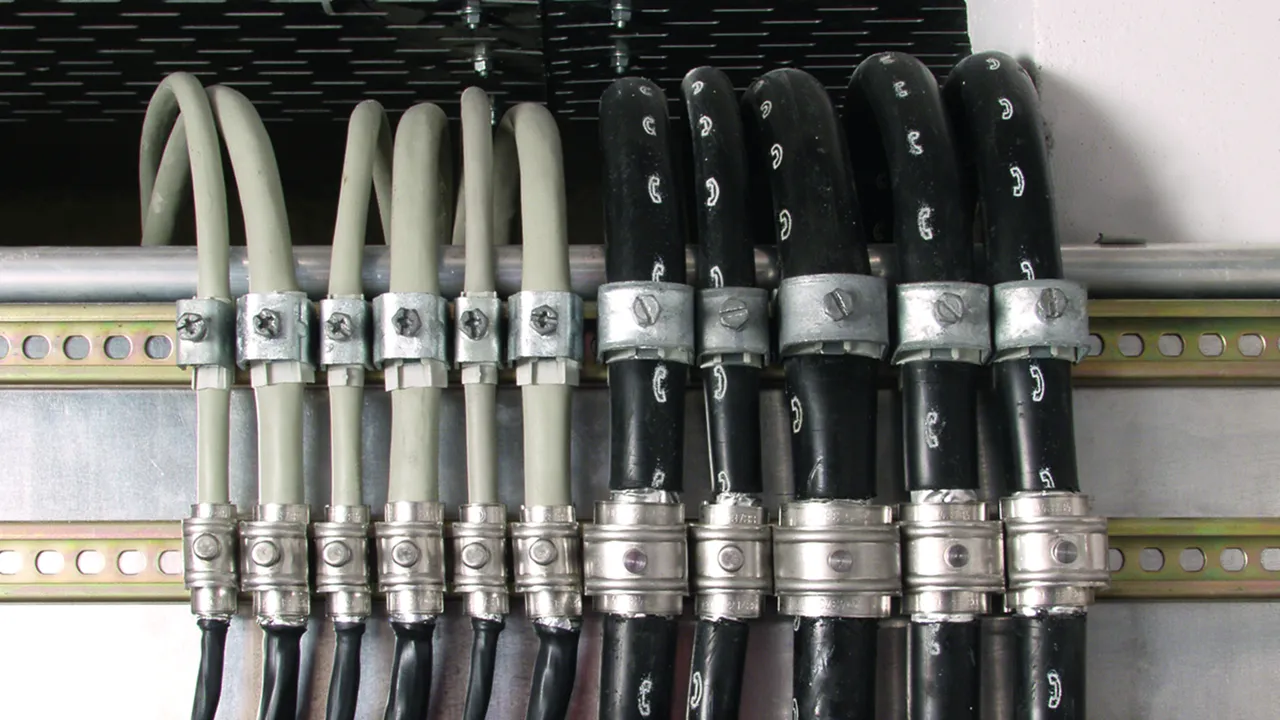

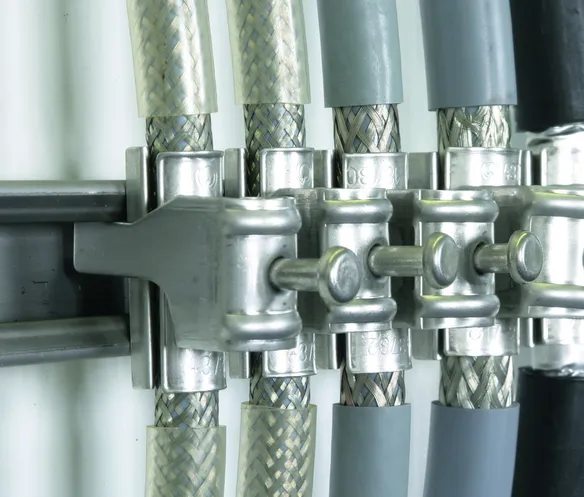

屏蔽连接端子，用于型钢安装的线缆屏蔽接地。适用于防雷等电位连接。可以用于后期安装，并且无需切断线缆屏蔽，也无需安装工具。

6 Products

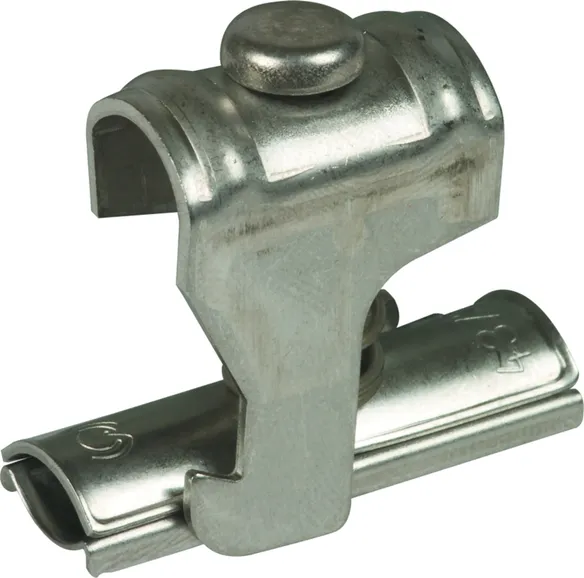

Part No. 308403 SAK 10 AS V4A

GTIN 4013364070509, Customs tariff No. (EU): 853690, Gross weight: 23.00 g, PU: 1.00 件

Images

Additional information

SAK 10 AS V4A 屏蔽连接端子
用于型钢安装
夹持范围 直径 5-10 mm
用于型钢安装的接地线缆屏蔽

制造商： DEHN
型号: SAK 10 AS V4A
货号: 308403
其他类似产品



Technical data

雷电流承载能力 (10/350 μs) 10 kA
夹持范围 圆导体 5-10 mm
材质 不锈钢
安装方式 型钢

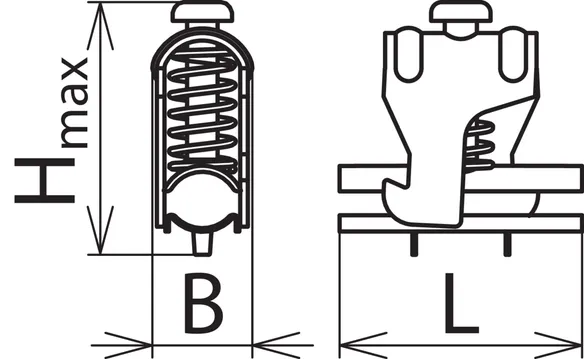

尺寸 (宽 x 长 x 高) 16 x 40 x 48 mm

Product 308403 was added to Notepad.

Go to Notepad

Product 308403 was added to the cart.

Go to Web-Shop

Part No. 308404 SAK 14 AS V4A

GTIN 4013364070516, Customs tariff No. (EU): 853690, Gross weight: 31.70 g, PU: 1.00 件

Images

Additional information

SAK 14 AS V4A 屏蔽连接端子
用于型钢安装
夹持范围 直径 8-14 mm
用于型钢安装的接地线缆屏蔽

制造商： DEHN
型号: SAK 14 AS V4A
货号: 308404
其他类似产品



Technical data

雷电流承载能力 (10/350 μs) 10 kA
夹持范围 圆导体 8-14 mm
材质 不锈钢
安装方式 型钢
尺寸 (宽 x 长 x 高) 19.5 x 40 x 50 mm

Product 308404 was added to Notepad.

Go to Notepad

Product 308404 was added to the cart.

Go to Web-Shop

Part No. 308405 SAK 18 AS V4A

GTIN 4013364070523, Customs tariff No. (EU): 853690, Gross weight: 38.05 g, PU: 1.00 件

Images

Additional information

SAK 18 AS V4A 屏蔽连接端子
用于型钢安装
夹持范围 直径 13-18 mm
用于型钢安装的接地线缆屏蔽

制造商： DEHN
型号: SAK 18 AS V4A
货号: 308405
其他类似产品



Technical data

雷电流承载能力 (10/350 μs) 10 kA
夹持范围 圆导体 13-18 mm
材质 不锈钢
安装方式 型钢
尺寸 (宽 x 长 x 高) 24 x 40 x 56 mm

Product 308405 was added to Notepad.

Go to Notepad

Product 308405 was added to the cart.

Go to Web-Shop

Part No. 308406 SAK 21 AS V4A

GTIN 4013364070530, Customs tariff No. (EU): 853690, Gross weight: 29.24 g, PU: 1.00 件

Images

Additional information

SAK 21 AS V4A 屏蔽连接端子
用于型钢安装
夹持范围 直径 17-21 mm
用于型钢安装的接地线缆屏蔽

制造商： DEHN
型号: SAK 21 AS V4A
货号: 308406
其他类似产品



Technical data

雷电流承载能力 (10/350 μs) 10 kA
夹持范围 圆导体 17-21 mm
材质 不锈钢
安装方式 型钢
尺寸 (宽 x 长 x 高) 29 x 40 x 59 mm

Product 308406 was added to Notepad.

Go to Notepad

Product 308406 was added to the cart.

Go to Web-Shop

Part No. 308407 SAK 26 AS V4A

GTIN 4013364070547, Customs tariff No. (EU): 853690, Gross weight: 61.28 g, PU: 1.00 件

Images

Additional information

SAK 26 AS V4A 屏蔽连接端子
用于型钢安装
夹持范围 直径 19-26 mm
用于型钢安装的接地线缆屏蔽

制造商： DEHN
型号: SAK 26 AS V4A
货号: 308407
其他类似产品



Technical data

雷电流承载能力 (10/350 μs) 10 kA
夹持范围 圆导体 19-26 mm
材质 不锈钢
安装方式 型钢
尺寸 (宽 x 长 x 高) 36.5 x 40 x 74 mm

Product 308407 was added to Notepad.

Go to Notepad

Product 308407 was added to the cart.

Go to Web-Shop

Part No. 308408 SAK 33 AS V4A

GTIN 4013364070554, Customs tariff No. (EU): 853690, Gross weight: 73.65 g, PU: 1.00 件

Images

Additional information

SAK 33 AS V4A 屏蔽连接端子
用于型钢安装
夹持范围 直径 25-33 mm
用于型钢安装的接地线缆屏蔽

制造商： DEHN
型号: SAK 33 AS V4A
货号: 308408
其他类似产品



Technical data

雷电流承载能力 (10/350 μs) 10 kA
夹持范围 圆导体 25-33 mm
材质 不锈钢
安装方式 型钢
尺寸 (宽 x 长 x 高) 45 x 40 x 82 mm

Product 308408 was added to Notepad.

Go to Notepad

Product 308408 was added to the cart.

Go to Web-Shop

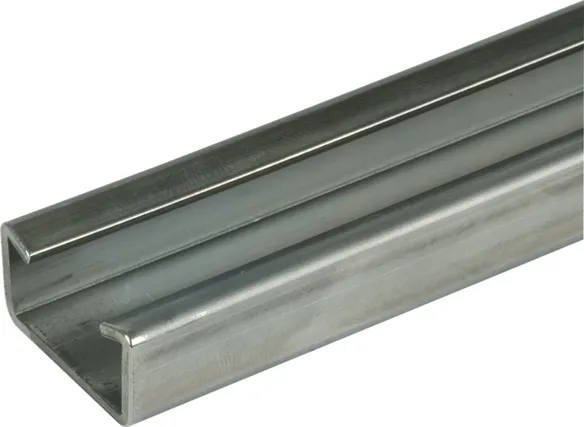

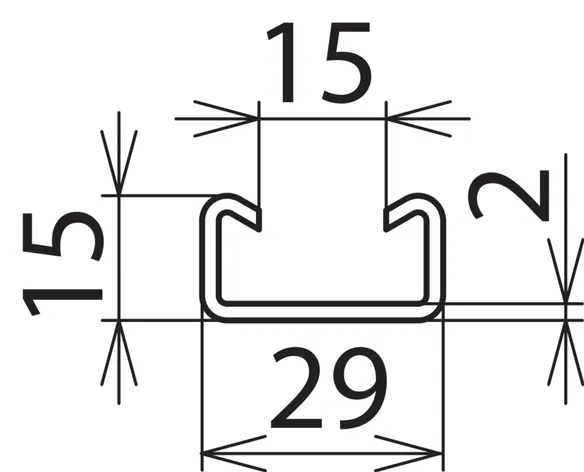

型钢

安装导轨，用于接地和固定屏蔽接线端子。

1 Product

Part No. 308421 AS SAK 1000 V2A

GTIN 4013364070561, Customs tariff No. (EU): 722240, Gross weight: 974.00 g, PU: 10.00 件

Images

Additional information

AS SAK 1000 V2A 型钢
用于固定屏蔽接线端子
长度 1000 mm
不锈钢

制造商： DEHN
型号: AS SAK 1000 V2A
货号: 308421
其他类似产品



Technical data

材质 不锈钢
尺寸 (宽 x 长 x 高) 29 x 1000 x 15 mm

Product 308421 was added to Notepad.

Go to Notepad

Product 308421 was added to the cart.

Go to Web-Shop

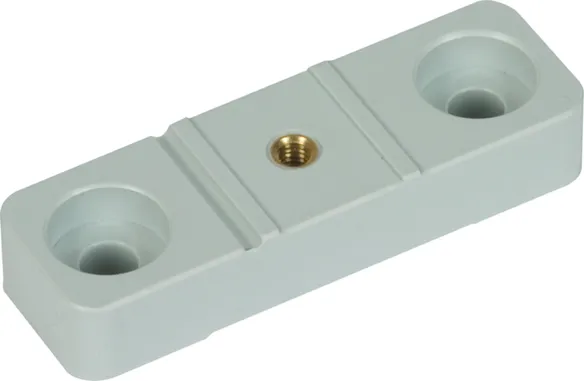

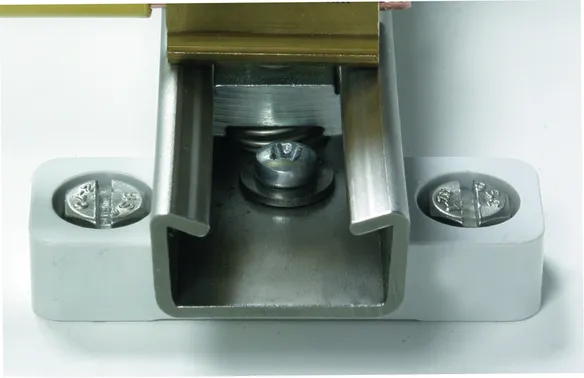

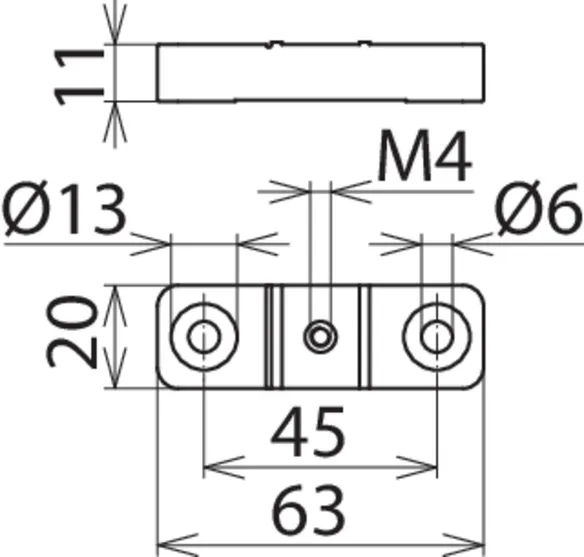

绝缘支撑件

用于安装AS SAK 1000 V2A 型钢的绝缘支撑件，带有M4螺纹孔。

1 Product

Part No. 308425 ST AS SAK K

GTIN 4013364058798, Customs tariff No. (EU): 392690, Gross weight: 19.30 g, PU: 1.00 件

Images

Additional information

ST AS SAK K 绝缘支撑件
用于型钢的绝缘支撑

制造商： DEHN
型号: ST AS SAK K
货号: 308425
其他类似产品



Technical data

材质 塑料

Product 308425 was added to Notepad.

Go to Notepad

Product 308425 was added to the cart.

Go to Web-Shop

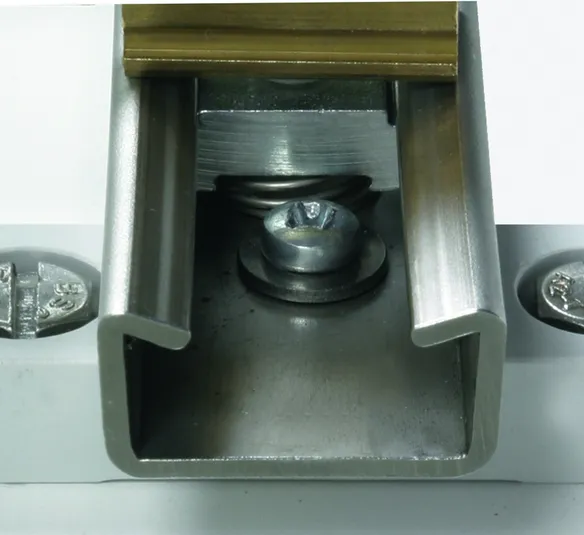

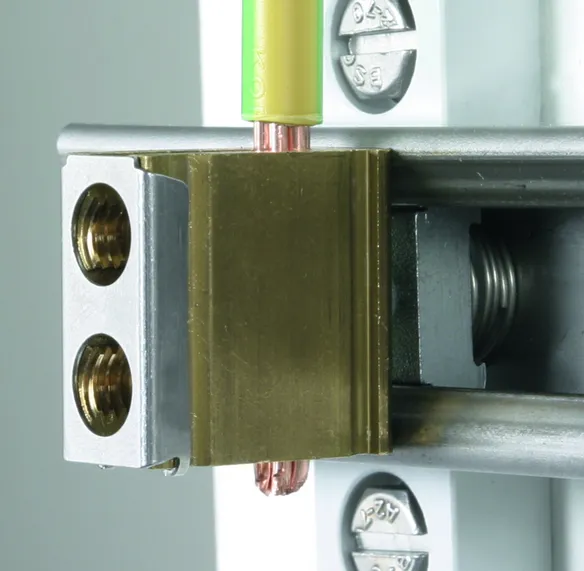

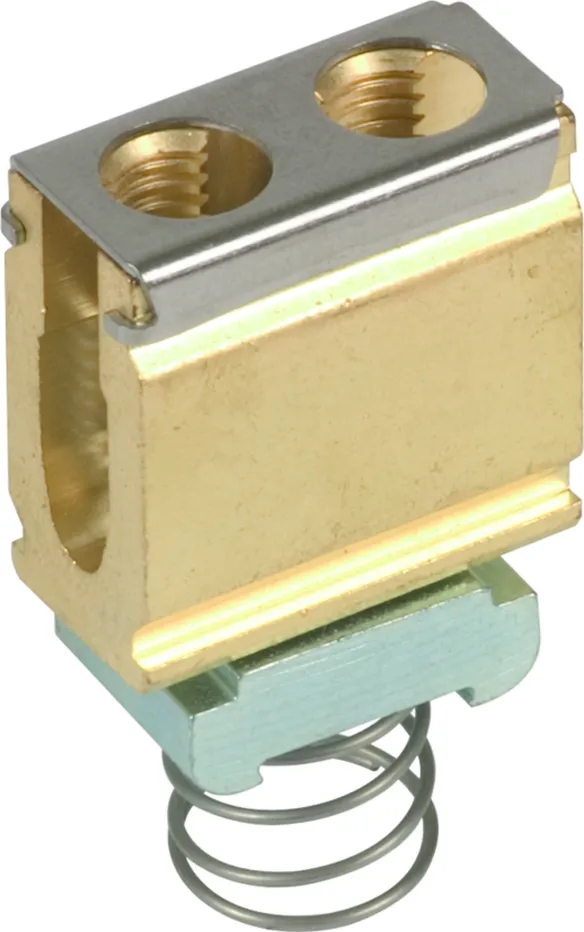

连接端子

用于等电位连接端子和AS SAK 1000 V2A 型钢的连接。

1 Product

Part No. 308411 AK 16 AS SAK MS

GTIN 4013364070578, Customs tariff No. (EU): 853690, Gross weight: 55.60 g, PU: 1.00 件

Images

Additional information

AK 16 AS SAK MS 连接端子
用于型钢的16mm2连接端子

制造商： DEHN
型号: AK 16 AS SAK MS
货号: 308411
其他类似产品



Technical data

单股线截面积 16 mm2
安装方式 型钢

Product 308411 was added to Notepad.

Go to Notepad

Product 308411 was added to the cart.

Go to Web-Shop
