BLITZDUCTORconnect accessories

Earthing module

1 Product

Part No. 927318 BCO M2 E

GTIN 4013364470644, Customs tariff No. (EU): 853690, Gross weight: 56.10 g, PU: 1.00 件

Images

Additional information

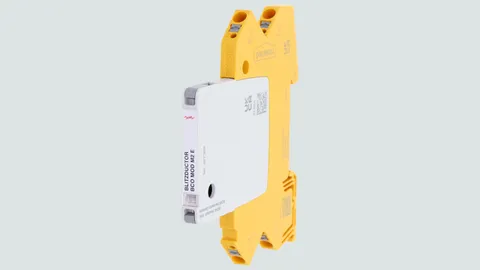

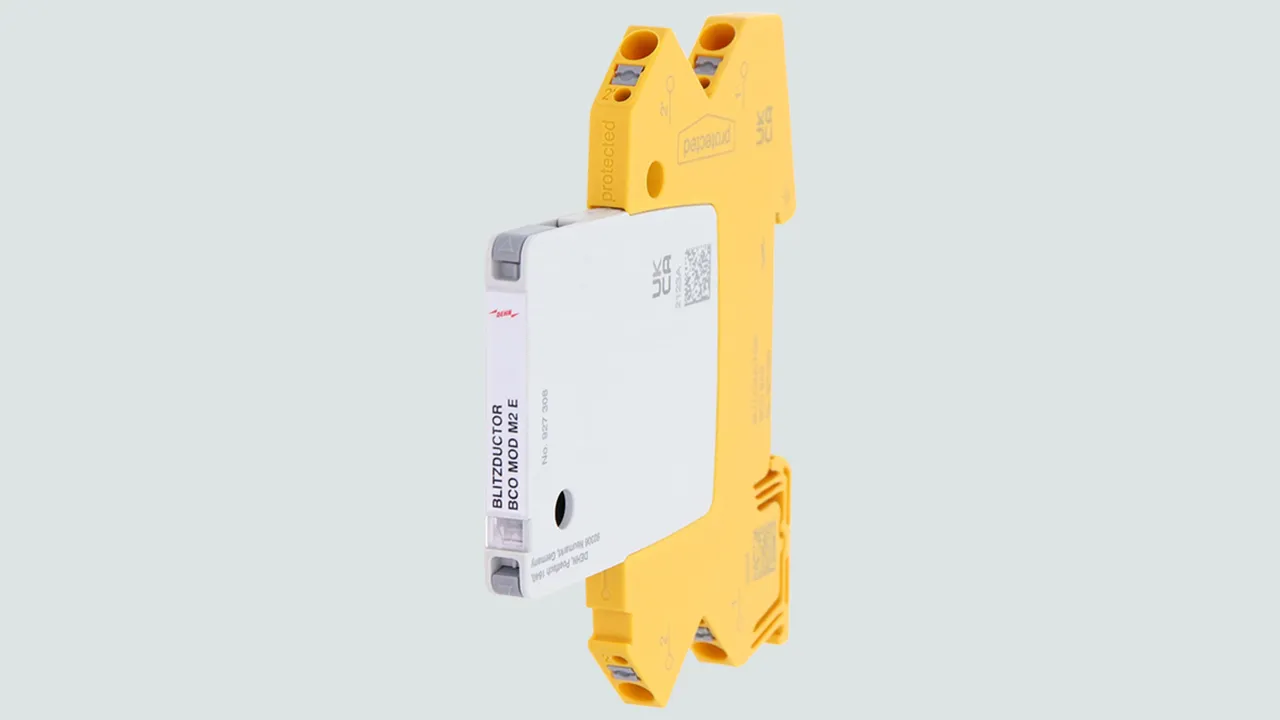

BLITZDUCTORconnect M2 E earthing module
Pluggable module for the defined equipotential bonding of all lines connected (not actively used) to the base part
For directly earthing 2 cable cores
Prewired unit consisting of
Earthing module with base part for DIN rail mounting

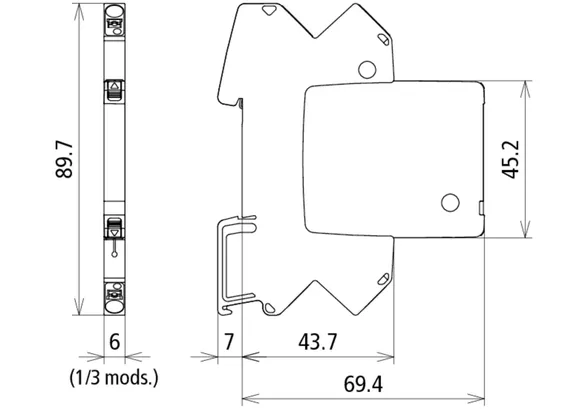

Width: 6 mm
Conductor connection: Push-in


BLITZDUCTORconnect M2 E 接地模块
可插拔模块，等电位连接底座上的所有（未使用的）接线
用于2 根电缆芯线的直接接地
使用预接线单元需包含
DIN 导轨安装的底座和接地模块
宽度：6 毫米
接线方式：直插式端子


制造商： DEHN
型号: BCO M2 E
货号: 927318
其他类似产品



Technical data

D1 总雷电冲击电流 (10/350 μs) (Iimp ) 3 kA
安装方式 BCO 底座
