Roof Conductor Holders for Flat Roofs

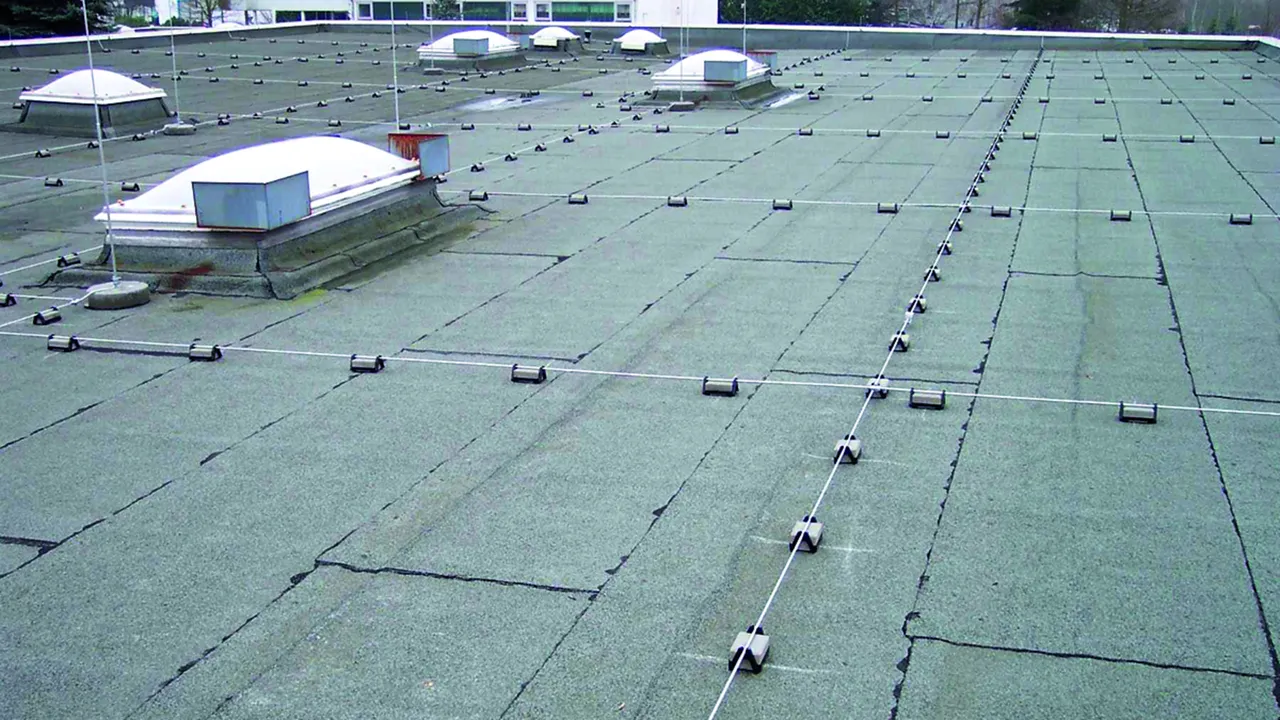

Roof conductor holders for attaching round conductors and strips (with adapter) to flat roofs.

Conductor holder with weatherproof plastic base plate, UV-stabilised and halogen-free
Frost-resistant concrete block in accordance with EN 1338 for paving stones, frost resistance tested according to EN 1340 (frost/dew test)
Concrete block and base part are recycled separately

Type FB2, with two conductor supports

2 Products

Part No. 253050 DLH FB2 8 LO 141X86X70

GTIN 4013364079687, Customs tariff No. (EU): 68109100, Gross weight: 1.04 kg, PU: 10.00 pc(s)

Images

Open PDF

Additional information

CAD files

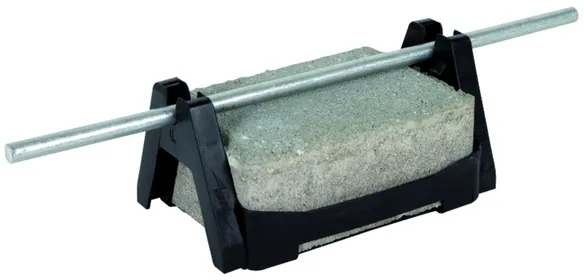

Conductor holder of type FB2 (loose) for flat roofs
Roof conductor holder for attaching round conductors to flat roofs
Type FB2 with two conductor supports
Made of frost-resistant concrete and weather-resistant plastic, UV-stabilised
Plastic and concrete part have to be recycled separately
Conductor routing: loose
Material of conductor holder: plastic
Conductor support Rd: 8 mm
Weight: 1 kg
Block: concrete (C35/45)

Brand: DEHN
Type: DLH FB2 8 LO 141X86X70
Part No.: 253050
or equivalent.

Certificates

Technical data

Conductor routing	loose
Material of conductor holder	plastic
Colour of conductor holder	black ●
Conductor support Rd	8 mm
Weight	1 kg
Block	concrete (C35/45)

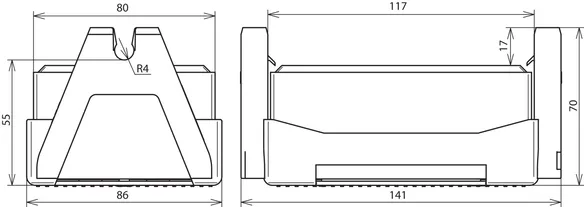

Dimensions	141 x 86 x 70 mm

Component protection	German Patent No. 19 820 855.3
Type	with two conductor supports
Conductor routing	loose
Material of conductor holder	plastic
Colour of conductor holder	black ●
Conductor support Rd	8 mm
Weight	1 kg
Block	concrete (C35/45)
Dimensions	141 x 86 x 70 mm

Product 253050 was added to Notepad.

Go to Notepad

Product 253050 was added to the cart.

Go to Web-Shop

Part No. 253060 DLH FB2 8 FE 141X86X70

GTIN 4013364081628, Customs tariff No. (EU): 68109100, Gross weight: 1.04 kg, PU: 10.00 pc(s)

Images

Open PDF

Additional information

CAD files

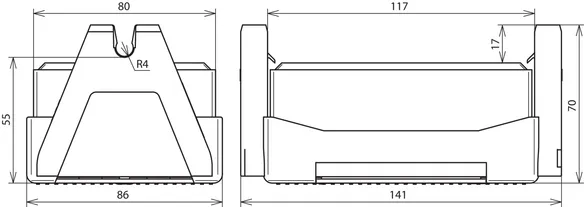

Conductor holder of type FB2 (fixed) for flat roofs
Roof conductor holder for attaching round conductors to flat roofs
Type FB2 with two conductor supports
Made of frost-resistant concrete and weather-resistant plastic, UV-stabilised
Plastic and concrete part have to be recycled separately
Conductor routing: fixed
Material of conductor holder: plastic
Conductor support Rd: 8 mm
Weight: 1 kg
Block: concrete (C35/45)

Brand: DEHN
Type: DLH FB2 8 FE 141X86X70
Part No.: 253060
or equivalent.

Certificates

Technical data

Conductor routing	fixed
Material of conductor holder	plastic
Colour of conductor holder	black ●
Conductor support Rd	8 mm
Weight	1 kg
Block	concrete (C35/45)
Dimensions	141 x 86 x 70 mm

Component protection	German Patent No. 19 820 855.3
Type	with two conductor supports
Conductor routing	fixed
Material of conductor holder	plastic
Colour of conductor holder	black ●
Conductor support Rd	8 mm
Weight	1 kg
Block	concrete (C35/45)
Dimensions	141 x 86 x 70 mm

Product 253060 was added to Notepad.

Go to Notepad

Product 253060 was added to the cart.

Go to Web-Shop

Type KF2, with two conductor supports

Clamped into roof sheeting strips (up to 5 mm thick) which are welded with or adhere to the roof sheeting.

1 Product

Part No. 253051 DLH KF2 8 LO 141X86X70

GTIN 4013364079823, Customs tariff No. (EU): 85389099, Gross weight: 45.81 g, PU: 100.00 pc(s)

Images

Open PDF

Additional information

CAD files

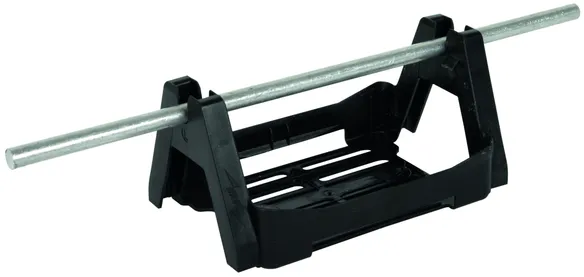

Conductor holder of type KF2 (loose) for flat roofs
Roof conductor holder for attaching round conductors to flat roofs
Type KF2 with two conductor supports, clamped into roof sheeting strips
(up to 5 mm thick) which are welded with or adhere to the roof sheeting.
Made of weather-resistant plastic, UV-stabilised

Conductor routing: loose
Material of conductor holder: plastic
Conductor support Rd: 8 mm

Brand: DEHN
Type: DLH KF2 8 LO 141X86X70
Part No.: 253051
or equivalent.

Certificates

Technical data

Conductor routing	loose
Material of conductor holder	plastic
Colour of conductor holder	black ●
Conductor support Rd	8 mm

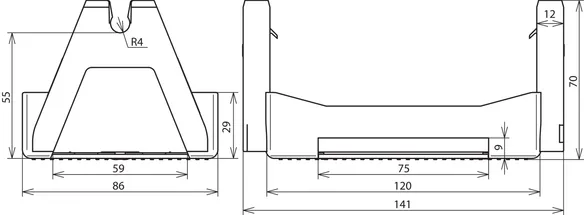

Dimensions	141 x 86 x 70 mm

Product 253051 was added to Notepad.

Go to Notepad

Product 253051 was added to the cart.

Go to Web-Shop

Type FB, with one conductor support

1 Product

Part No. 253015 DLH FB 8 LO 100X100X70

GTIN 4013364022201, Customs tariff No. (EU): 68109100, Gross weight: 1.05 kg, PU: 10.00 pc(s)

Images

Open PDF

Additional information

CAD files

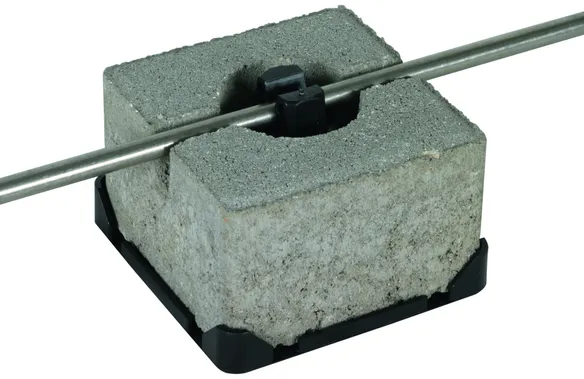

Conductor holder type FB (loose) for flat roofs
Roof conductor holder for attaching round conductors to flat roofs
Type FB with one conductor support
Made of frost-resistant concrete and weather-resistant plastic, UV-stabilised
Plastic and concrete parts have to be recycled separately
Conductor routing: loose
Material of conductor holder: plastic
Conductor support Rd: 8 mm
Weight: 1 kg
Block: concrete (C35/45)

Brand: DEHN
Type: DLH FB 8 LO 100X100X70
Part No.: 253015
or equivalent.

Certificates

Technical data

Conductor routing	loose
Material of conductor holder	plastic
Colour of conductor holder	black ●
Conductor support Rd	8 mm
Weight	1 kg
Block	concrete (C35/45)

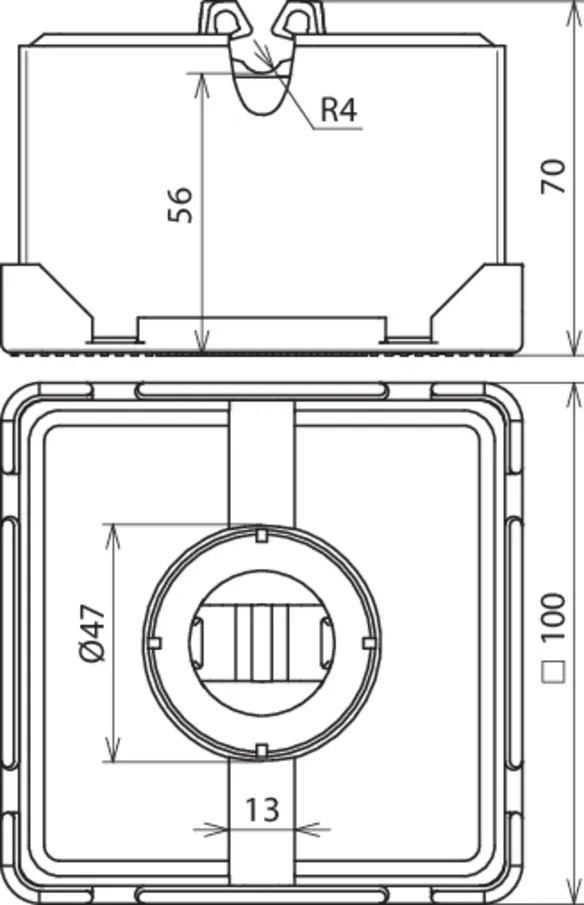

Dimensions	100 x 100 x 70 mm

Component protection	German Patent No. 32 24 332.4
Type	square, open form
Conductor routing	loose
Material of conductor holder	plastic
Colour of conductor holder	black ●
Conductor support Rd	8 mm
Weight	1 kg
Block	concrete (C35/45)
Dimensions	100 x 100 x 70 mm

Product 253015 was added to Notepad.

Go to Notepad

Product 253015 was added to the cart.

Go to Web-Shop

Type KF, with one conductor support

Clamped into roof sheeting strips (up to 2.5 mm thick) which are welded with or adhere to the roof sheeting.

1 Product

Part No. 253030 DLH KF 8 LO DBS 110X100X70 SW

GTIN 4013364054271, Customs tariff No. (EU): 85389099, Gross weight: 65.81 g, PU: 100.00 pc(s)

Images

Open PDF

Additional information

CAD files

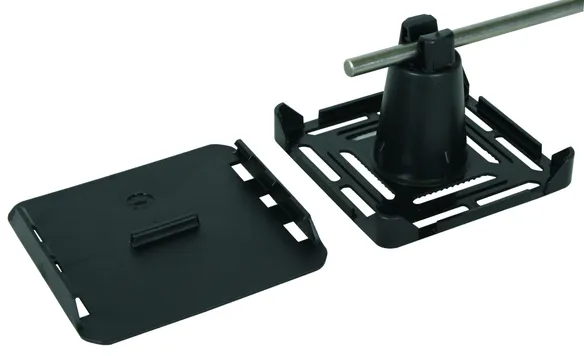

Conductor holder of type KF (loose) for flat roofs
Roof conductor holder for attaching round conductors to flat roofs
Type KF with one conductor support, clamped into roof sheeting strips
(up to 2.5 mm thick) which are welded with or adhere to the roof sheeting
Made of weather-resistant plastic, UV-stabilised
Conductor routing: loose
Material of conductor holder: plastic
Conductor support Rd: 8 mm

Brand: DEHN
Type: DLH KF 8 LO DBS 110X100X70 SW
Part No.: 253030
or equivalent.

Certificates

Technical data

Conductor routing	loose
Material of conductor holder	plastic
Colour of conductor holder	black ●
Conductor support Rd	8 mm

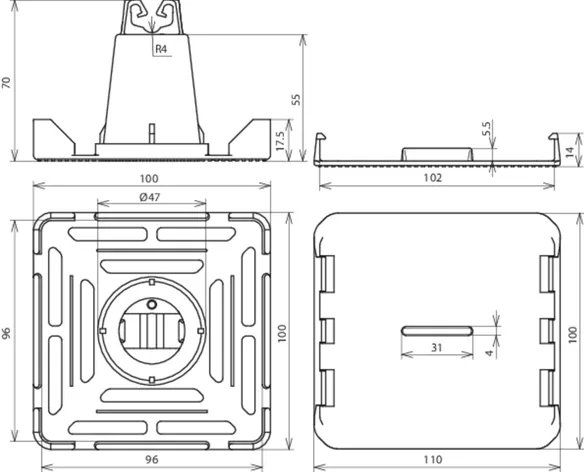

Dimensions	110 x 100 x 75 mm
Separate plastic upper part for type KF (Part No. 253 016) is available upon request.

Component protection	German Patent No. 44 26 404.6
Conductor routing	loose
Material of conductor holder	plastic
Colour of conductor holder	black ●
Conductor support Rd	8 mm
Dimensions	110 x 100 x 75 mm
Application note	for flat roofs with plastic, sealing or flat roofing sheets
Fixing possibility	to clamp in roofing sheet stripes (approx. 300 x 90 mm) up to 2.5 mm (not included in delivery) which are welded or adhered with the roof foil on site
Separate plastic upper part for type KF (Part No. 253 016) is available upon request.

Product 253030 was added to Notepad.

Go to Notepad

Product 253030 was added to the cart.

Go to Web-Shop

With one conductor support

Roof conductor holder set for weighing down the down conductor on metal and flat roofs.

1 Product

Part No. 253335 DLH 8.10 KS BES180 GP300 K

GTIN 4013364499416, Customs tariff No. (EU): 68109100, Gross weight: 5.09 kg, PU: 24.00 pc(s)

Images

Open PDF

Additional information

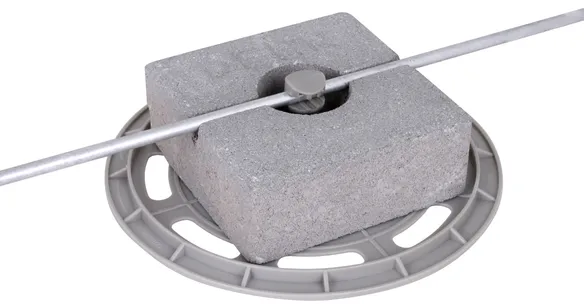

Conductor holder (loose) for flat roofs
Roof conductor holder, for flat roofs for fixing
round conductors to flat roofs

with one conductor support
made of frost-resistant concrete and
weather-resistant plastic, UV-stabilised
plastic and concrete parts can be recycled separately
Conductor routing: loose
Material of conductor holder: plastic
Conductor support Rd: 8-10 mm
Weight: 4.6 kg
Block: concrete (C35/45)

Brand: DEHN
Type: DLH 8.10 KS BES180 GP300 K
Part No.: 253335
or equivalent.

Certificates

Technical data

Conductor routing	loose
Material of conductor holder	plastic
Colour of conductor holder	grey ●
Conductor support Rd	8-10 mm
Weight	4.6 kg
Block	concrete (C35/45)

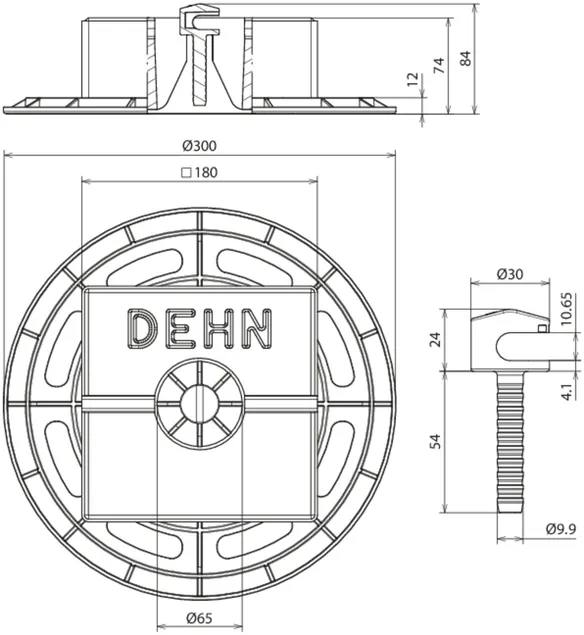

Dimensions	300 x 300 x 84 mm

Product 253335 was added to Notepad.

Go to Notepad

Product 253335 was added to the cart.

Go to Web-Shop
