Fixed Earthing Terminal M16
:quality(98)/www.dehn.us/store/f/62770292/HDVORSCHAU/478027_16-9.jpg)
:quality(98)/www.dehn.us/store/f/62770292/HDVORSCHAU/478027_16-9.jpg)

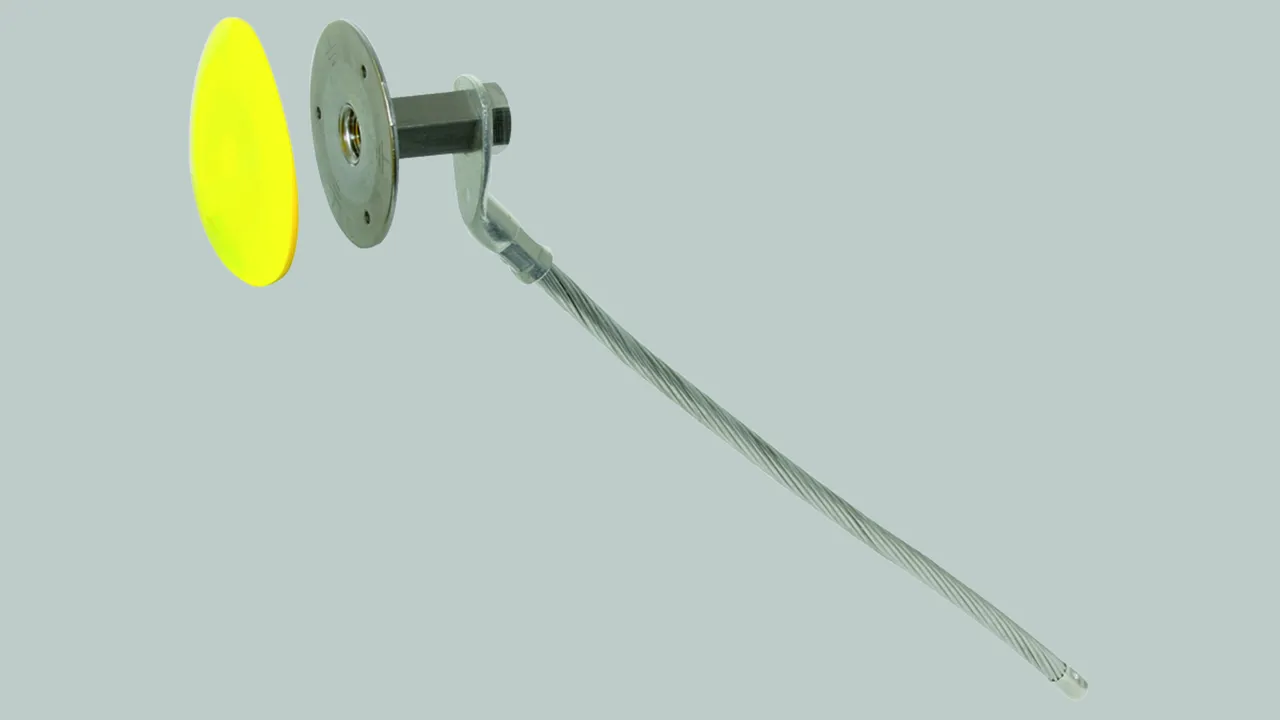

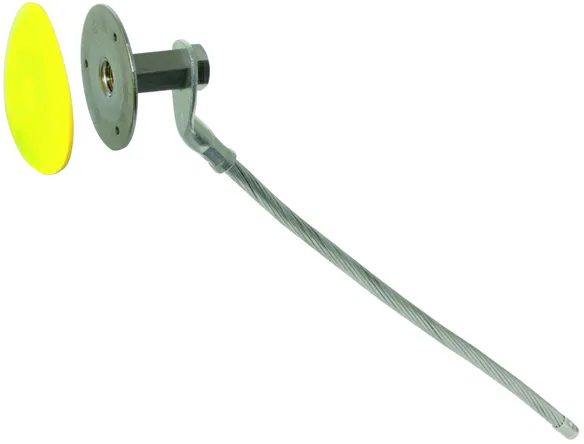

With M16 connection thread for higher current loads (50 Hz), e.g. for connecting the ring equipotential bonding system with the earth-termination systems of power installations with nominal AC voltages over 1 kV (transformer earthing).
The connection cable may be connected to other components of the earth-termination system using, e.g. a cross unit (Part No. 318 207/318 209), or to the reinforcement using the corresponding clamps.
For formwork installation, with snap-on plastic cover (yellow) and sealing around the connection thread.
The connection cable may be connected to other components of the earth-termination system using, e.g. a cross unit (Part No. 318 207/318 209), or to the reinforcement using the corresponding clamps.
For formwork installation, with snap-on plastic cover (yellow) and sealing around the connection thread.
Part No. 478027 EFP M16 V4A SL400
GTIN 4013364125995, Customs tariff No. (EU): 85359000, Gross weight: 603.40 g, PU: 10.00 pc(s)
:quality(98)/www.dehn.us/store/f/62770304/HDVORSCHAU/478027.jpg)
:quality(98)/www.dehn.us/store/f/62770304/HDVORSCHAU/478027.jpg)

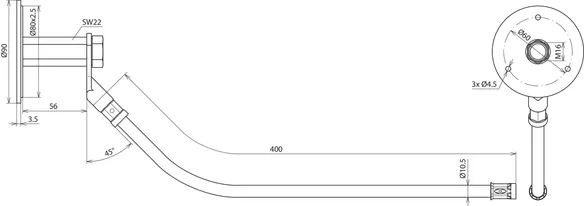

:quality(98)/www.dehn.us/store/f/62770305/HDVORSCHAU/478027m_D.jpg)
:quality(98)/www.dehn.us/store/f/62770305/HDVORSCHAU/478027m_D.jpg)
Technical data
| Connection thread | M16 |
| Material of plate | StSt (V4A) |
| Material No. | 1.4571 / 1.4404 / 1.4401 |
| ASTM / AISI: | 316Ti / 316L / 316 |
| Material of cable | Cu /gal Sn |
| Cross-section of connecting cable | 70 mm² |
| Length of connecting cable | 400 mm |
| Diameter Ø connecting cable | 10.5 mm |
| Connection plate Ø | 80 mm |
| Standard | EN 62561-1 |
| Short-circuit current (a.c. 50 Hz / d.c.) (1 s; ≤ 150 °C) | 9.1 kA |
