Accessories for HVI ultra

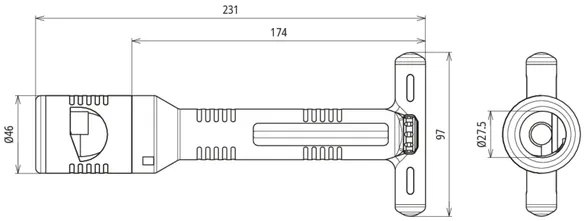

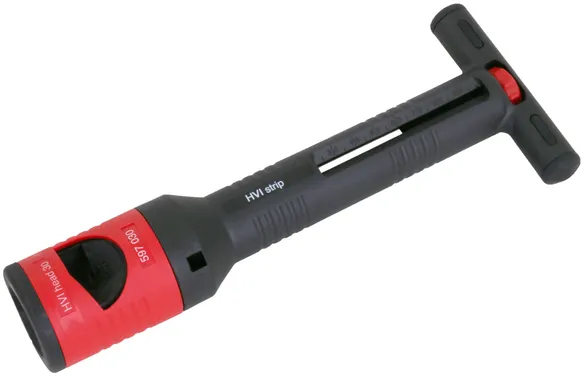

HVI strip 30

1 Product

Part No. 597330 HVI STRIP 30

GTIN 4013364517745, Customs tariff No. (EU): 82055980, Gross weight: 362.87 g, PU: 1.00 pc(s)

Images

Additional information

HVI strip + head 30
Stripping insert with handle
for stripping the HVI ultra
Simple exposure of the inner conductor
Diameter Ø conductor: 30 mm
Material of moulded part: Plastic
Material of blade: StSt
Colour: black ● / red ●
Dimensions: approx. 231 x 97 mm

Brand: DEHN
Type: HVI STRIP 30
Part No.: 597330
or equivalent.



Technical data

Diameter Ø conductor 30 mm
Material of moulded part Plastic
Material of blade StSt
Colour black ● / red ●
Dimensions approx. 231 x 97 mm

Product 597330 was added to Notepad.

Go to Notepad

Product 597330 was added to the cart.

Go to Web-Shop

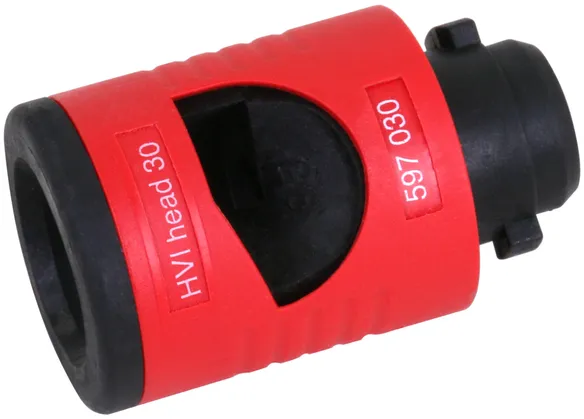

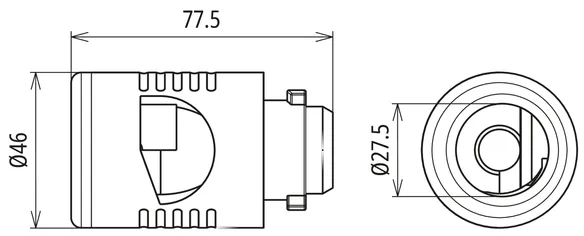

HVI head 30

1 Product

Part No. 597030 HVI HEAD 30

GTIN 4013364515093, Customs tariff No. (EU): 82055980, Gross weight: 100.17 g, PU: 1.00 pc(s)

Images

Additional information

HVI head 30
Stripping insert
(Without handle or cordless screwdriver adapter)
for stripping for HVI ultra
Simple exposure of the inner conductor
Diameter Ø conductor: 30 mm
Material of moulded part: Plastic
Material of blade: StSt
Colour: black ● / red ●
Dimensions: approx. 77 x 46 mm

Brand: DEHN
Type: HVI HEAD 30
Part No.: 597030
or equivalent.



Technical data

Diameter Ø conductor 30 mm
Material of moulded part Plastic
Material of blade StSt
Colour black ● / red ●
Dimensions approx. 77 x 46 mm

Product 597030 was added to Notepad.

Go to Notepad

Product 597030 was added to the cart.

Go to Web-Shop

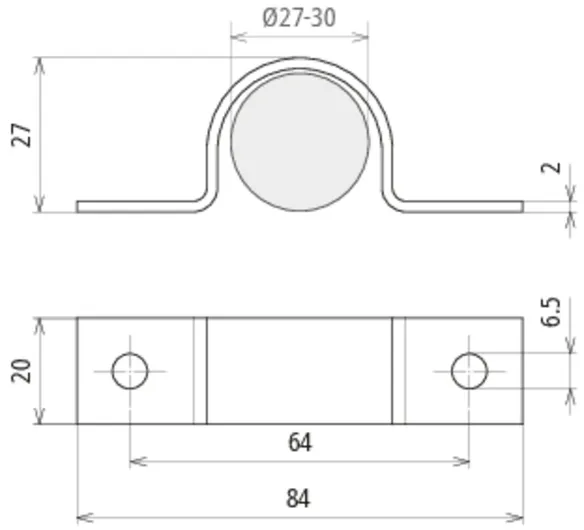

Saddle clamp

1 Product

Part No. 275269 LH ZSUEL 30 2XB6.5 V2A

GTIN 4013364519213, Customs tariff No. (EU): 85389099, Gross weight: 33.51 g, PU: 25.00 pc(s)

Images

Additional information

Two-screw clamp
for direct wall mounting
of the HVI power or
HVI ultra Conductor
Stainless steel version
Conductor routing: Fixed
Material of conductor holder: StSt
Conductor support Rd: 27-30 mm
Fixing: [2x] Ø6,5 mm

Brand: DEHN
Type: LH ZSUEL 30 2XB6.5 V2A
Part No.: 275269
or equivalent.



Technical data

Conductor routing Fixed
Material of conductor holder StSt
Conductor support Rd 27-30 mm
Fixing [2x] Ø6,5 mm

Product 275269 was added to Notepad.

Go to Notepad

Product 275269 was added to the cart.

Go to Web-Shop

Air-termination tip adapter

4 Products

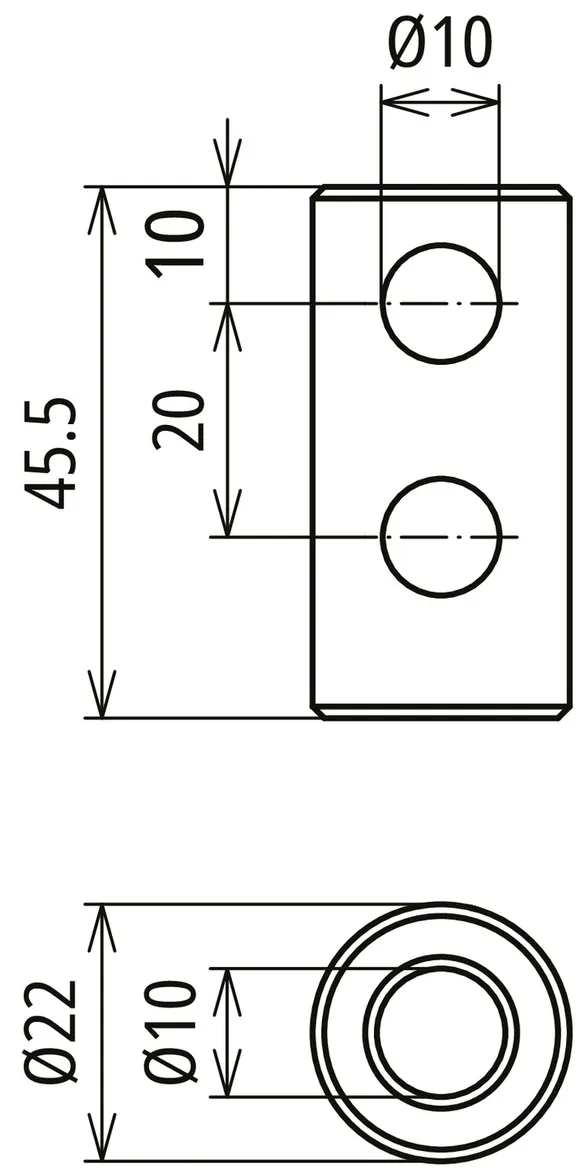

Part No. 819897 AD 22 10 L45 V2A

GTIN 4013364515567, Customs tariff No. (EU): 85389099, Gross weight: 110.73 g, PU: 10.00 pc(s)

Images

Additional information

Reducing adapter, stainless steel, Ø22/16 mm
Reducing adapter for fixtures
Ø22 mm for the central mounting
of Ø10-mm air-termination rods
on supporting tubes
Material: NIRO
Reduction: 22/10 mm

Brand: DEHN
Type: AD 22 10 L45 V2A
Part No.: 819897
or equivalent.



Technical data

Material NIRO
Reduction (Ø) 22/10 mm

Product 819897 was added to Notepad.

Go to Notepad

Product 819897 was added to the cart.

Go to Web-Shop

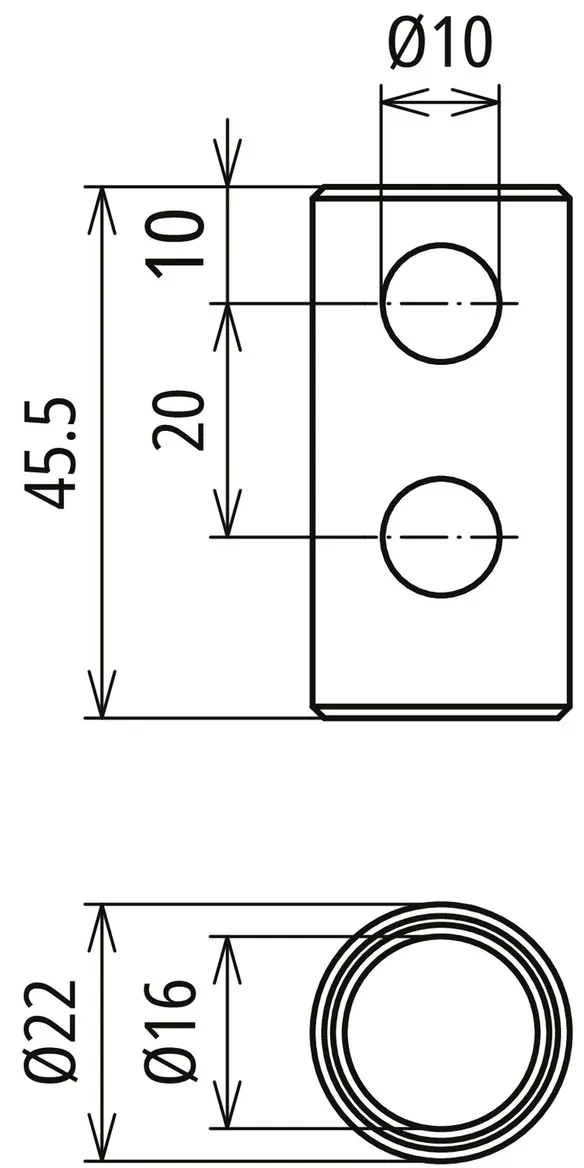

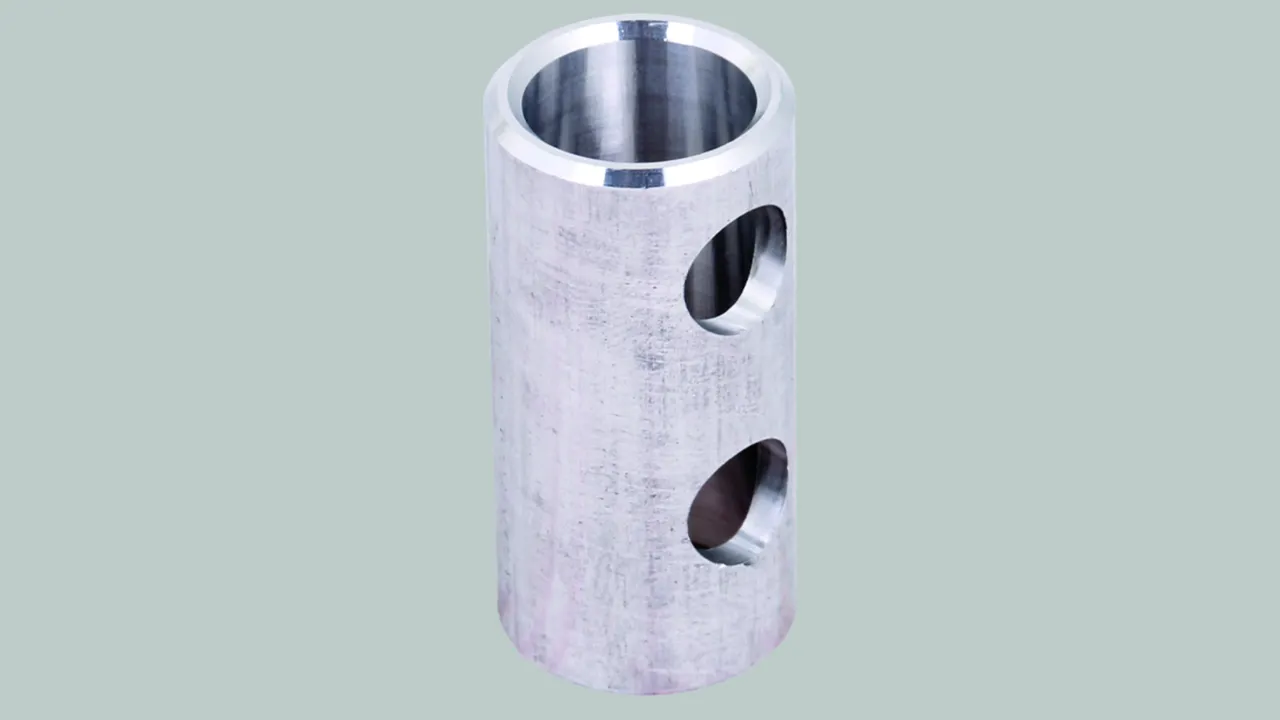

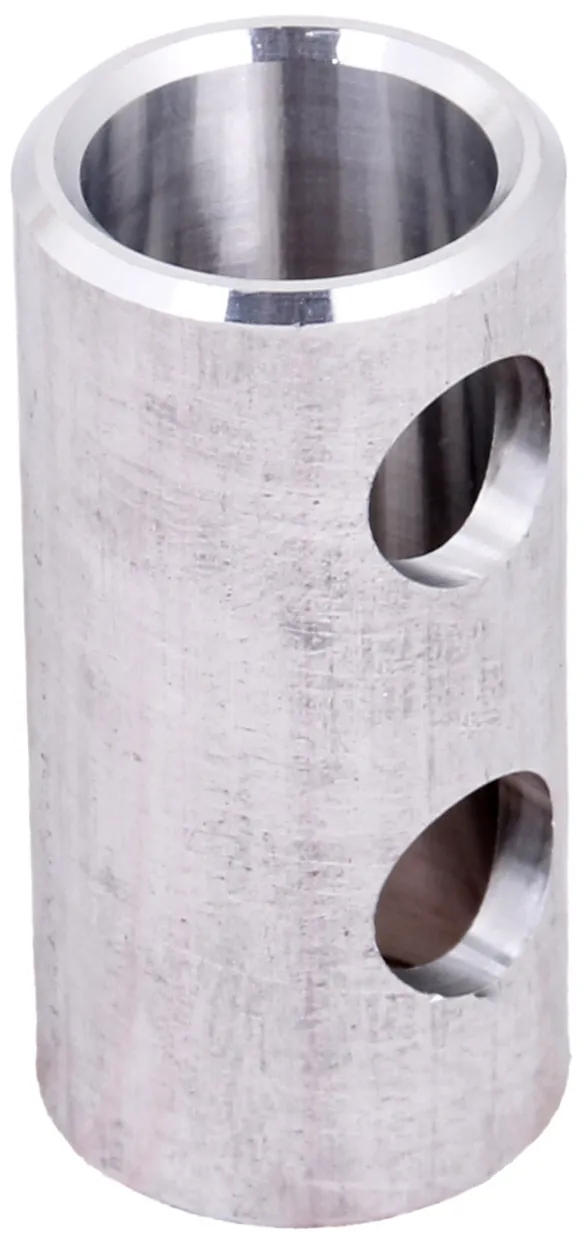

Part No. 819895 AD 22 16 L45 AL

GTIN 4013364515574, Customs tariff No. (EU): 85389099, Gross weight: 35.78 g, PU: 10.00 pc(s)

Images

Additional information

Reducing adapter, Al, Ø22/16mm
Reducing adapter for fixtures
Ø22 mm for the central mounting
of Ø16-mm air-termination rods
on supporting tubes
Material: Al
Reduction: 22/16 mm

Brand: DEHN
Type: AD 22 16 L45 AL
Part No.: 819895
or equivalent.



Technical data

Material Al
Reduction (Ø) 22/16 mm

Product 819895 was added to Notepad.

Go to Notepad

Product 819895 was added to the cart.

Go to Web-Shop

Part No. 819896 AD 22 16 L45 V2A

GTIN 4013364515581, Customs tariff No. (EU): 85389099, Gross weight: 71.11 g, PU: 10.00 pc(s)

Images

Additional information

Reducing adapter, stainless steel, Ø22/16 mm
Reducing adapter for fixtures
Ø22 mm for the central mounting
of Ø16-mm air-termination rods
on supporting tubes
Material: NIRO
Reduction: 22/16 mm

Brand: DEHN
Type: AD 22 16 L45 V2A
Part No.: 819896
or equivalent.



Technical data

Material NIRO
Reduction (Ø) 22/16 mm

Product 819896 was added to Notepad.

Go to Notepad

Product 819896 was added to the cart.

Go to Web-Shop

Part No. 819898 AD 22 10 L45 AL

GTIN 4013364515550, Customs tariff No. (EU): 85389099, Gross weight: 49.33 g, PU: 10.00 pc(s)

Images

Additional information

Reducing adapter, Al, Ø22/10 mm
Reducing adapter for fixtures
Ø22 mm for the central mounting
of Ø10-mm air-termination rods
on supporting tubes
Material: Al
Reduction: 22/10 mm

Brand: DEHN
Type: AD 22 10 L45 AL
Part No.: 819898
or equivalent.



Technical data

Material Al
Reduction (Ø) 22/10 mm

Product 819898 was added to Notepad.

Go to Notepad

Product 819898 was added to the cart.

Go to Web-Shop

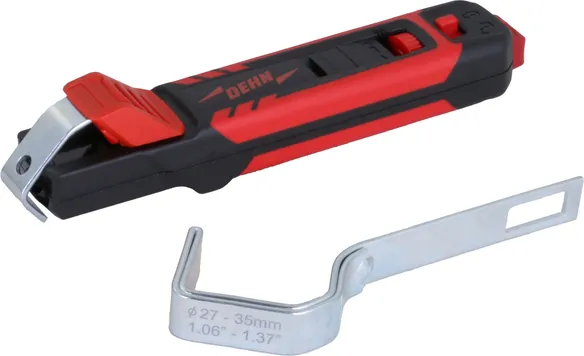

Stripping knife

1 Product

Part No. 597231 HVI TOOL CKS

GTIN 4013364525207, Customs tariff No. (EU): 82119200, Gross weight: 204.81 g, PU: 1.00 pc(s)

Images

Additional information

HVI tool CKS
Cable knife system
for stripping all HVI Conductor types
Diameter Ø conductor: 8-35 mm
Material of moulded part: Plastic
Material of blade: StSt
Colour: black ● / red ●

Brand: DEHN
Type: HVI TOOL CKS
Part No.: 597231
or equivalent.



Technical data

Diameter Ø conductor 8-35 mm
Material of moulded part Plastic
Material of blade StSt
Colour black ● / red ●

Product 597231 was added to Notepad.

Go to Notepad

Product 597231 was added to the cart.

Go to Web-Shop
