Connection elements for HVI ultra Conductor

Connection element for HVI ultra Conductor

1 Product

Part No. 819190 AE BO13 KF HVI U V2A

GTIN 4013364515864, Customs tariff No. (EU): 85359000, Gross weight: 315.20 g, PU: 10.00 pc(s)

Images

Additional information

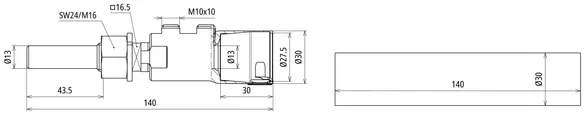

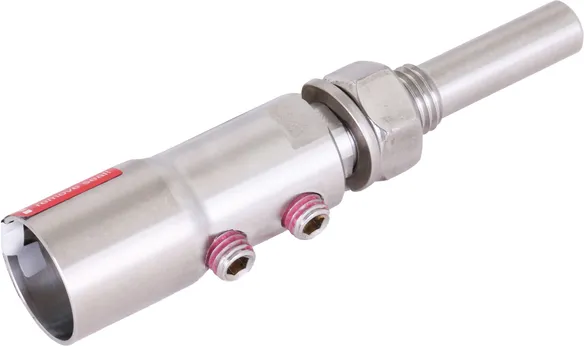

Connection element for HVI ultra Conductor, stainless steel
Connection elements for HVI ultra Conductor
for sealing the HVI ultra Conductor
on both ends, for establishing the
connections of the conductor e.g. to the
connection plate on the air-termination mast,
to other parts of the
external lightning protection system
or the earthing system.
Incl. heat-shrinkable sleeve
Material: StSt
Connection: Bolt, Ø13 mm, L 40 mm and M16 thread
Diameter Ø connection element: 30 mm
Design: with spring washer
Screw: M10x10 mm threaded pin
Material of screw / nut: StSt
Lightning current carrying capability (10/350 µs): 200 kA

Brand: DEHN
Type: AE BO13 KF HVI U V2A
Part No.: 819190
or equivalent.



Technical data

Material StSt
Connection Bolt, Ø13 mm, L 40 mm and M16 thread
Diameter Ø connection element 30 mm
Design with spring washer
Screw M10x10 mm threaded pin
Material of screw / nut StSt
Lightning current carrying capability (10/350 µs) 200 kA

Product 819190 was added to Notepad.

Go to Notepad

Product 819190 was added to the cart.

Go to Web-Shop

Fixing ring for HVI ultra Conductor

2 Products

Part No. 819278 BFR SR D50 4H HVI U AL

GTIN 4013364522596, Customs tariff No. (EU): 76169990, Gross weight: 379.60 g, PU: 1.00 pc(s)

Images

Additional information

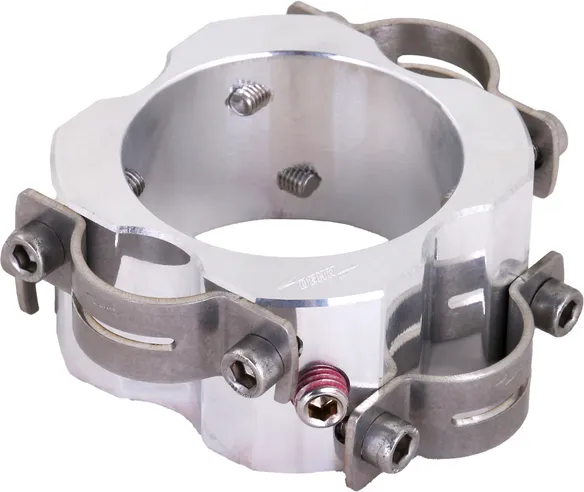

Aluminium fixing ring
for HVI power and HVI ultra
suitable for mounting on Ø50 supporting tube
consisting of fixing ring and
4 saddle clamps for the cable sealing end
Fixing ring material: Al
Saddle clamp material: StSt
Diameter Ø fixing ring: 61 mm
Standard: DIN IEC/TS 62561-8 (VDE V 0185-561-8)
Conductor holder: 4 x 27 mm

Brand: DEHN
Type: BFR SR D50 4H HVI U AL
Part No.: 819278
or equivalent.



Technical data

Fixing ring material Al
Saddle clamp material StSt
Diameter Ø fixing ring 61 mm
Standard DIN IEC/TS 62561-8 (VDE V 0185-561-8)
Conductor holder 4 x 27 mm

Product 819278 was added to Notepad.

Go to Notepad

Product 819278 was added to the cart.

Go to Web-Shop

Part No. 819279 BFR SR D50 4H HVI U V2A

GTIN 4013364522602, Customs tariff No. (EU): 73269098, Gross weight: 798.00 g, PU: 1.00 pc(s)

Images

Additional information

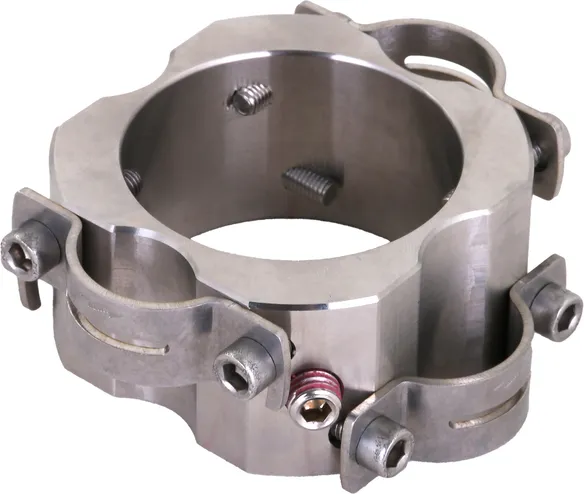

Fixing ring StSt
for HVI power and HVI ultra
suitable for mounting on Ø50 supporting tube
consisting of fixing ring and
4x saddle clamp for the cable sealing end
Fixing ring material: StSt
Saddle clamp material: StSt
Diameter Ø fixing ring: 61 mm
Standard: DIN IEC/TS 62561-8 (VDE V 0185-561-8)
Conductor holder: 4 x 27 mm

Brand: DEHN
Type: BFR SR D50 4H HVI U V2A
Part No.: 819279
or equivalent.



Technical data

Fixing ring material StSt
Saddle clamp material StSt
Diameter Ø fixing ring 61 mm
Standard DIN IEC/TS 62561-8 (VDE V 0185-561-8)
Conductor holder 4 x 27 mm

Product 819279 was added to Notepad.

Go to Notepad

Product 819279 was added to the cart.

Go to Web-Shop

EB element

1 Product

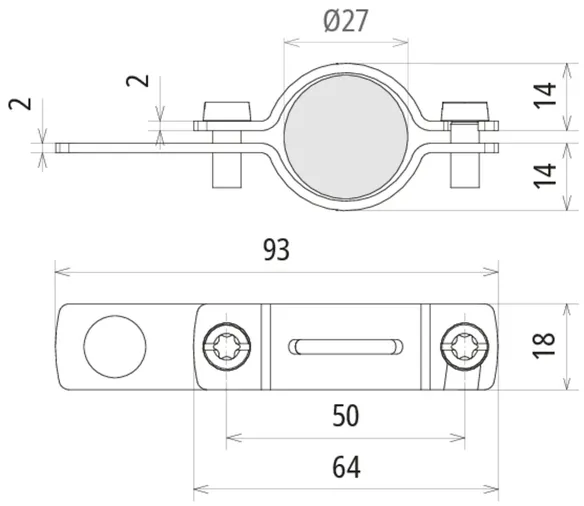

Part No. 410249 PAE 27 AB13 V2A

GTIN 4013364520028, Customs tariff No. (EU): 85359000, Gross weight: 62.00 g, PU: 1.00 pc(s)

Images

Additional information

EB connection element for HVI power and HVI ultra Conductor
EB connection element for the discharging
the electrical field of the HVI power
and HVI ultra Conductor in the
sealing end range
Specially slotted contact surface
to electrically contact the
semi-conductive sheath
Material: StSt
Clamping range Ø: 27 mm
Connection hole Ø: 13 mm
Screw: M6 x 14 mm
Material of screw / nut: StSt
Standard: DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Brand: DEHN
Type: PAE 27 AB13 V2A
Part No.: 410249
or equivalent.



Technical data

Material StSt
Clamping range Ø 27 mm
Connection hole Ø 13 mm
Screw m M6 x 14 mm
Material of screw / nut StSt
Standard DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Product 410249 was added to Notepad.

Go to Notepad

Product 410249 was added to the cart.

Go to Web-Shop

Tail

1 Product

Part No. 390498 ES ZF 2XB12.5 V2A

GTIN 4013364525764, Customs tariff No. (EU): 85359000, Gross weight: 57.00 g, PU: 10.00 pc(s)

Images

Additional information

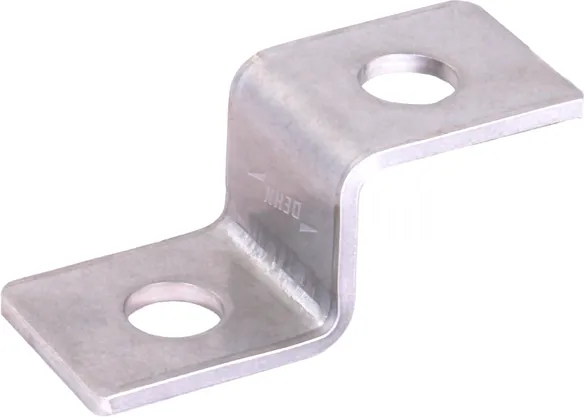

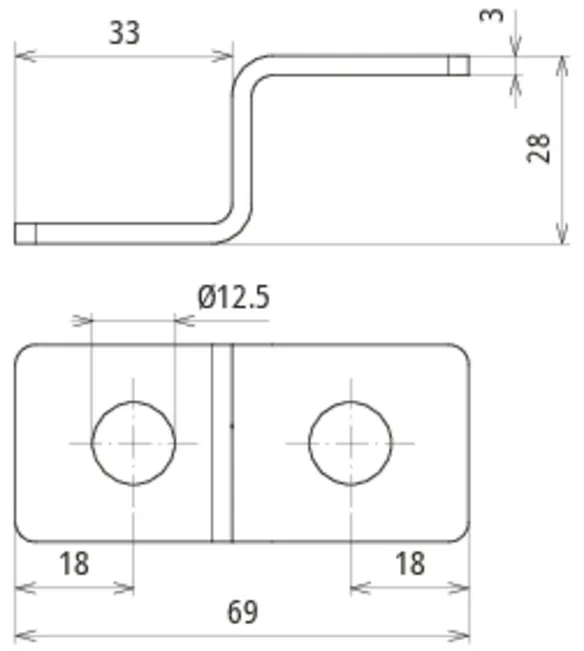

Z-shaped end piece
with two Ø12.5-mm boreholes
for installing two KS connectors
with M12 thread
Material: StSt
Hole Ø: 2x 12.5 mm

Brand: DEHN
Type: ES ZF 2XB12.5 V2A
Part No.: 390498
or equivalent.



Technical data

Material StSt
Hole Ø 2x 12.5 mm

Product 390498 was added to Notepad.

Go to Notepad

Product 390498 was added to the cart.

Go to Web-Shop
