Part No. 105370 SR D50 3200 HVI U GFK V2A

GTIN 4013364524323, Customs tariff No. (EU): 85389099, Gross weight: 10.73 kg, PU: 1.00 pc(s)

Images

Open PDF

Additional information

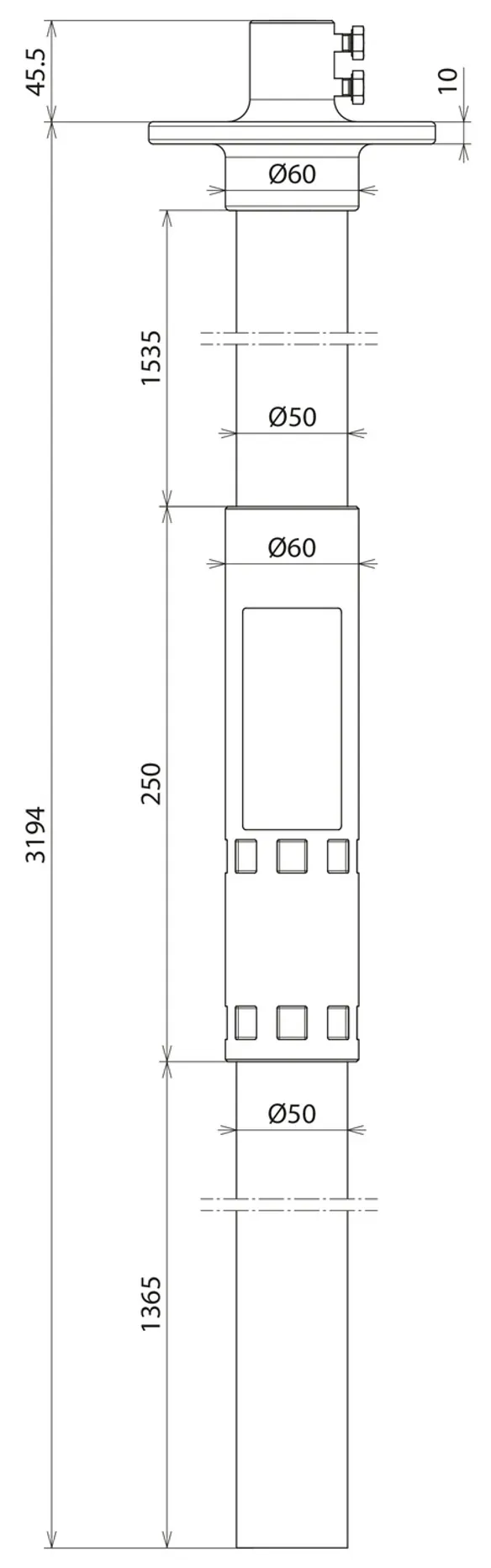

Supporting tube for HVI ultra Conductor without air-termination tip, length: 3,200mm, GRP/StSt
GRP/aluminium support tubes without internal sealing end
(only for routing outside the tube) for maintaining the separation distance from electrically
conductive parts as per DIN EN 62305 (VDE 0185-305-3).
The supporting tubes are dimensioned according to Eurocode 1
(DIN EN 1991-1-4 + DIN EN 1991-1-4/NA).
Insulating clearance made of glass-fibre reinforced plastic (GRP)
Material factor km = 0.7
Light grey colour, UV-stabilised, one-piece
Material of supporting tube: GRP / StSt
Length of supporting tube: 3235 mm
Outside diameter Ø : 50 mm
Length of insulating clearance: 1535 mm

Brand: DEHN
Type: SR D50 3200 HVI U GFK V2A
Part No.: 105370
or equivalent.

Technical data

Material of supporting tube	GRP / StSt
Length of supporting tube	3235 mm
Outside diameter Ø	50 mm
Length of insulating clearance	1535 mm

Material of supporting tube	GRP / StSt
Length of supporting tube	3235 mm
Transport length	3235 mm
Outside diameter Ø	50 mm
Length of insulating clearance	1535 mm
Material factor km	0.7
Permanent temperature range	-50 °C ... +100 °C
Type	UV-stabilised
Sleeve	60 x 5 mm
Pull-out force with a length of 500 mm	200 N (supporting tube insulator as per 62561-8)
Bending force with a length of 500 mm	200 N (supporting tube insulator as per 62561-8)
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Product 105370 was added to Notepad.

Go to Notepad

Product 105370 was added to the cart.

Go to Web-Shop

Part No. 105371 SR D50 4700 HVI U GFK V2A

GTIN 4013364522305, Customs tariff No. (EU): 85389099, Gross weight: 16.00 kg, PU: 1.00 pc(s)

Images

Open PDF

Additional information

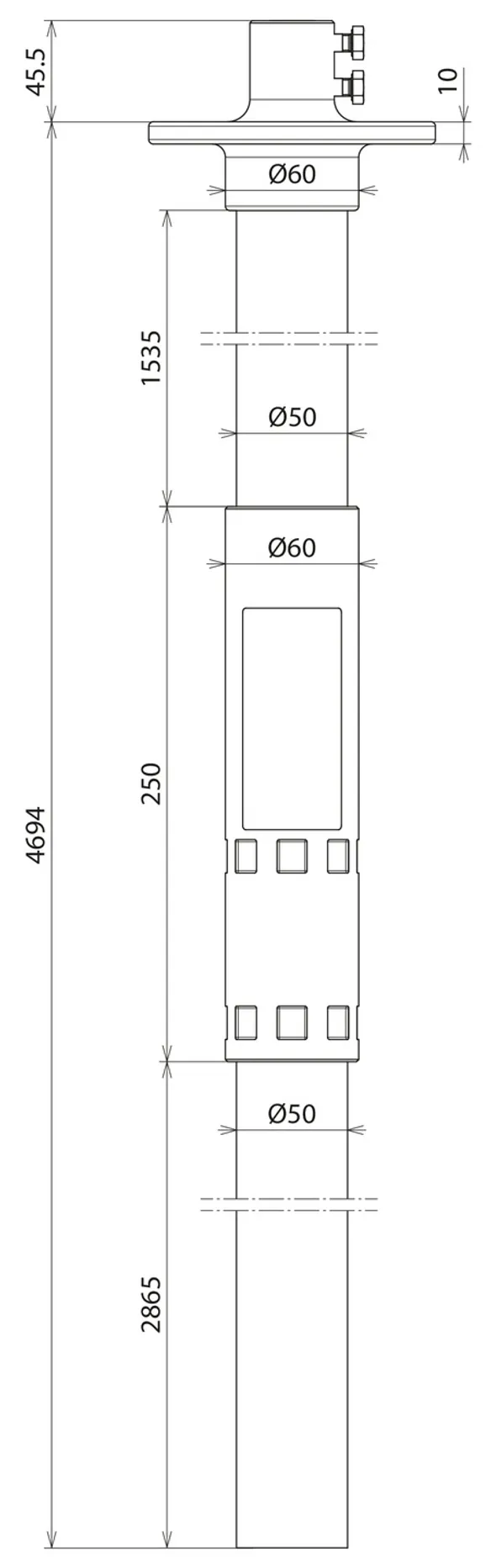

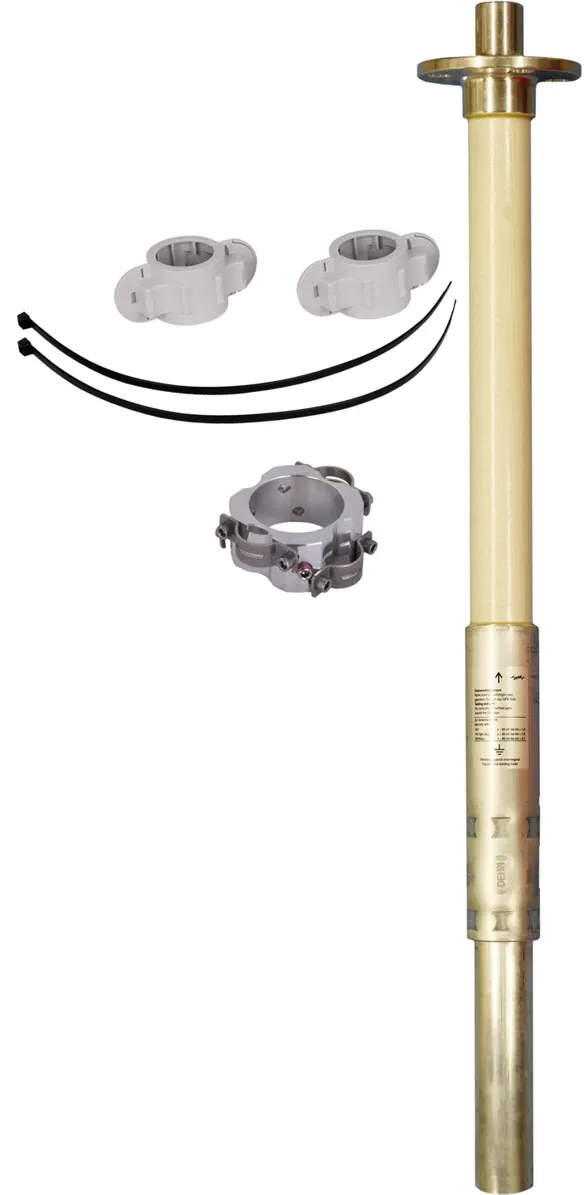

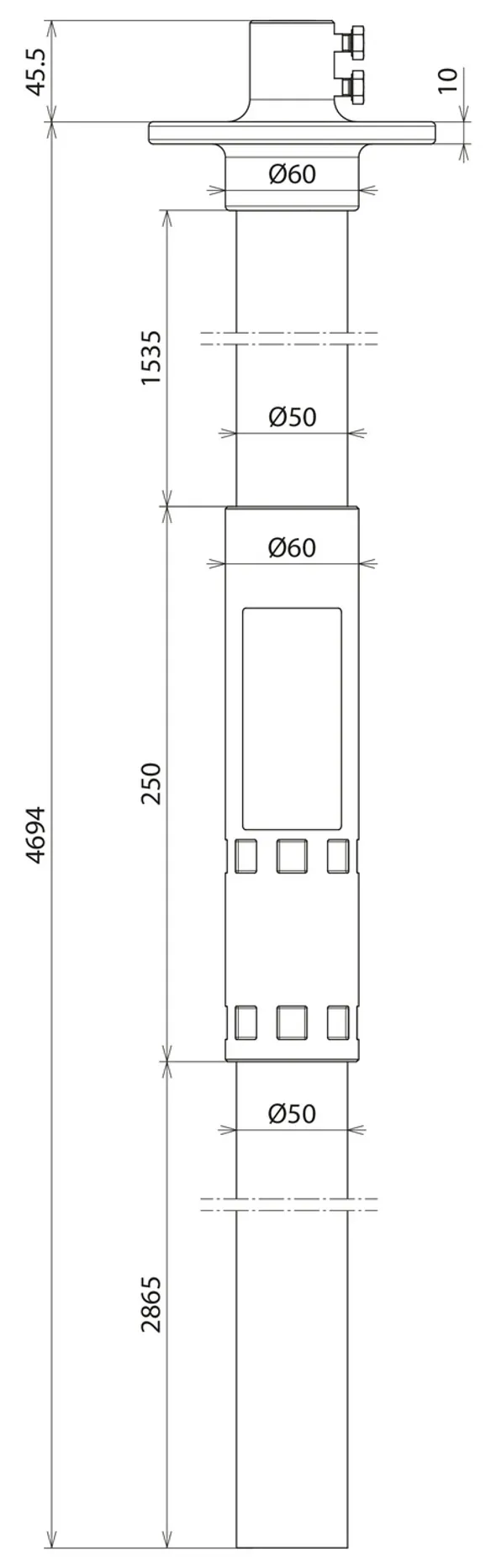

Supporting tube for HVI ultra Conductor without air-termination tip, length: 4,700mm, GRP/StSt
GRP/aluminium support tubes without internal sealing end
(only for routing outside the tube) for maintaining the separation distance from electrically
conductive parts as per DIN EN 62305 (VDE 0185-305-3).
The supporting tubes are dimensioned according to Eurocode 1
(DIN EN 1991-1-4 + DIN EN 1991-1-4/NA).
Insulating clearance made of glass-fibre reinforced plastic (GRP)
Material factor km = 0.7
Light grey colour, UV-stabilised, one-piece
Material of supporting tube: GRP / StSt
Length of supporting tube: 4735 mm
Outside diameter Ø : 50 mm
Length of insulating clearance: 1535 mm

Brand: DEHN
Type: SR D50 4700 HVI U GFK V2A
Part No.: 105371
or equivalent.

Technical data

Material of supporting tube	GRP / StSt
Length of supporting tube	4735 mm
Outside diameter Ø	50 mm
Length of insulating clearance	1535 mm

Material of supporting tube	GRP / StSt
Length of supporting tube	4735 mm
Transport length	4735 mm
Outside diameter Ø	50 mm
Length of insulating clearance	1535 mm
Material factor km	0.7
Permanent temperature range	-50°C to +100°C
Type	UV-stabilised
Sleeve	60 x 5 mm
Pull-out force with a length of 500 mm	200 N (supporting tube insulator as per 62561-8)
Bending force with a length of 500 mm	200 N (supporting tube insulator as per 62561-8)
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Product 105371 was added to Notepad.

Go to Notepad

Product 105371 was added to the cart.

Go to Web-Shop

Part No. 105580 SR D50 3200 HVI U GFK AL

GTIN 4013364519510, Customs tariff No. (EU): 85389099, Gross weight: 5.54 kg, PU: 1.00 pc(s)

Images

Open PDF

Additional information

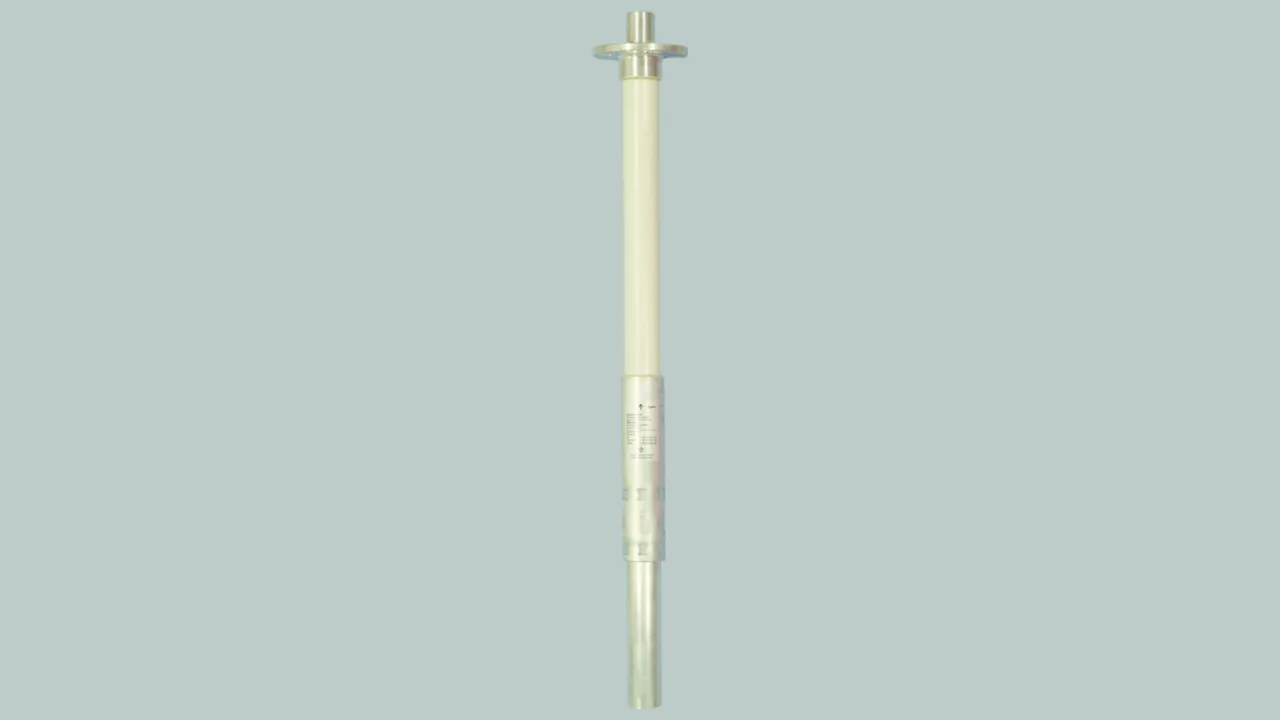

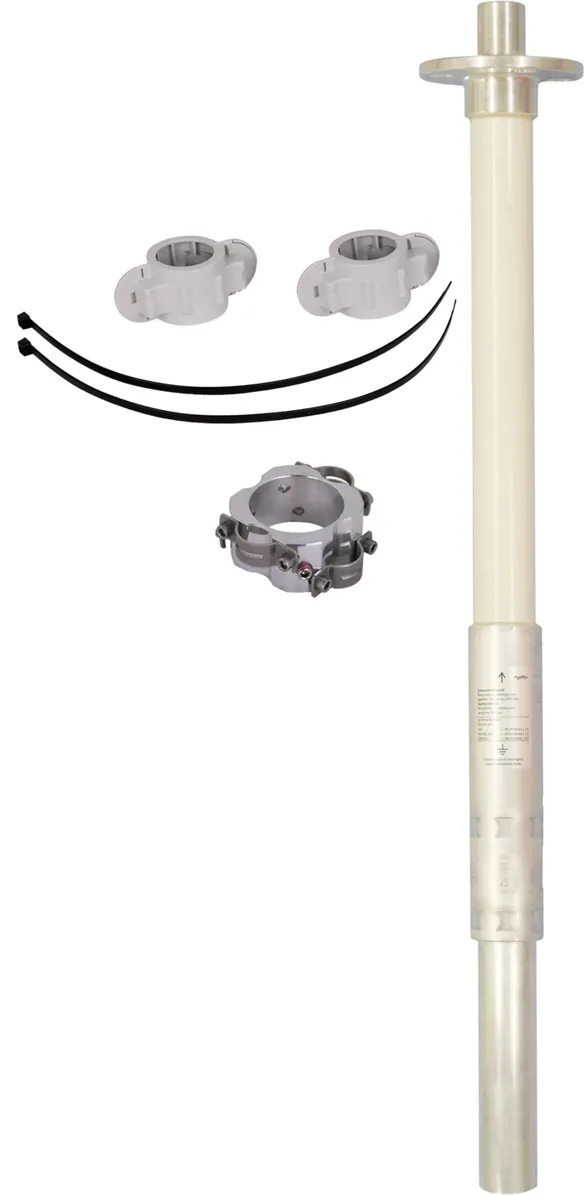

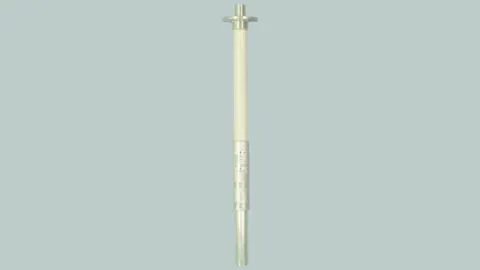

Supporting tube for HVI ultra Conductor without air-termination tip, length: 3,200mm, GRP/Alu
GRP/aluminium support tubes without internal sealing end
(only for routing outside the tube) for maintaining the separation distance from electrically
conductive parts as per DIN EN 62305 (VDE 0185-305-3).
The supporting tubes are dimensioned according to Eurocode 1
(DIN EN 1991-1-4 + DIN EN 1991-1-4/NA).
Insulating clearance made of glass-fibre reinforced plastic (GRP)
Material factor km = 0.7
Light grey colour, UV-stabilised, one-piece
Material of supporting tube: GFK / Al
Length of supporting tube: 3190 mm
Outside diameter Ø : 50 mm
Length of insulating clearance: 1535 mm

Brand: DEHN
Type: SR D50 3200 HVI U GFK AL
Part No.: 105580
or equivalent.

Technical data

Material of supporting tube	GFK / Al
Length of supporting tube	3190 mm
Outside diameter Ø	50 mm
Length of insulating clearance	1535 mm

Material of supporting tube	GFK / Al
Length of supporting tube	3190 mm
Transport length	3190 mm
Outside diameter Ø	50 mm
Length of insulating clearance	1535 mm
Material factor km	0.7
Permanent temperature range	-50°C to +100°C
Type	UV-stabilised
Sleeve	60 x 5 mm
Pull-out force with a length of 500 mm	200 N (supporting tube insulator as per 62561-8)
Bending force with a length of 500 mm	200 N (supporting tube insulator as per 62561-8)
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Product 105580 was added to Notepad.

Go to Notepad

Product 105580 was added to the cart.

Go to Web-Shop

Part No. 105581 SR D50 4700 HVI U GFK AL

GTIN 4013364519527, Customs tariff No. (EU): 85389099, Gross weight: 7.86 kg, PU: 1.00 pc(s)

Images

Open PDF

Additional information

Supporting tube for HVI ultra Conductor without air-termination tip, length: 4,700mm, GRP/Alu
GRP/aluminium support tubes without internal sealing end
(only for routing outside the tube) for maintaining the separation distance from electrically
conductive parts as per DIN EN 62305 (VDE 0185-305-3).
The supporting tubes are dimensioned according to Eurocode 1
(DIN EN 1991-1-4 + DIN EN 1991-1-4/NA).
Insulating clearance made of glass-fibre reinforced plastic (GRP)
Material factor km = 0.7
Light grey colour, UV-stabilised, one-piece
Material of supporting tube: GRP / Al
Length of supporting tube: 4735 mm
Outside diameter Ø : 50 mm
Length of insulating clearance: 1535 mm

Brand: DEHN
Type: SR D50 4700 HVI U GFK AL
Part No.: 105581
or equivalent.

Technical data

Material of supporting tube	GRP / Al
Length of supporting tube	4735 mm
Outside diameter Ø	50 mm
Length of insulating clearance	1535 mm

Material of supporting tube	GRP / Al
Length of supporting tube	4735 mm
Transport length	4735 mm
Outside diameter Ø	50 mm
Length of insulating clearance	1535 mm
Material factor km	0.7
Permanent temperature range	-50°C to +100°C
Type	UV-stabilised
Sleeve	60 x 5 mm
Pull-out force with a length of 500 mm	200 N (supporting tube insulator as per 62561-8)
Bending force with a length of 500 mm	200 N (supporting tube insulator as per 62561-8)
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Product 105581 was added to Notepad.

Go to Notepad

Product 105581 was added to the cart.

Go to Web-Shop
