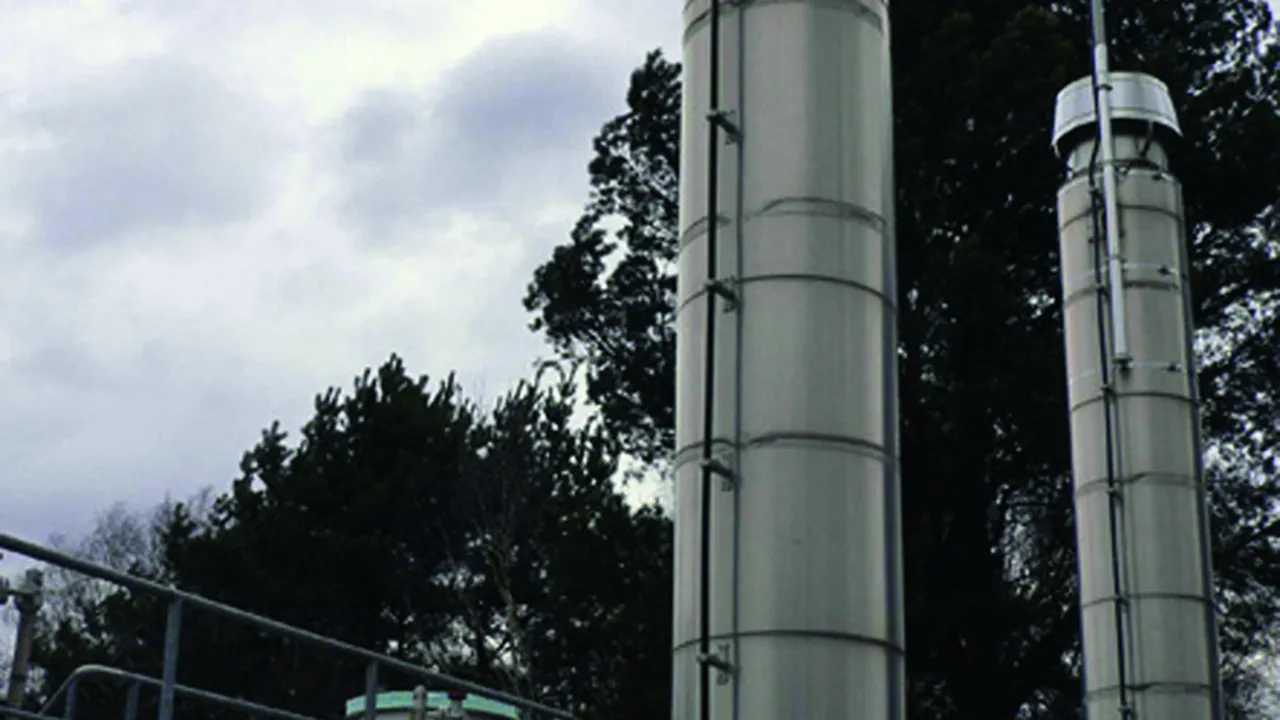

Conductor holder for HVI ultra Conductor in hazardous areas

Operators of facilities with potentially explosive atmospheres are obliged to categorise these installations / parts of installations into different potentially explosive atmospheres. Lightning is to be considered a potential source of ignition for these installations. Due to national industrial safety regulations, an explosion protection document must be produced. The explosion protection document describes the various potentially explosive atmospheres.

The HVI ultra Conductor is a product suitable for use in the potentially explosive atmospheres Ex zone 1 (gases, vapours, mists) and Ex zone 21 (dusts). Certified in accordance with DIN EN 60079-0 and DIN EN 60079-14.
The special installation conditions safely prevent electric sparks to neighbouring metal parts when lightning current flows through the HVI power Conductor.

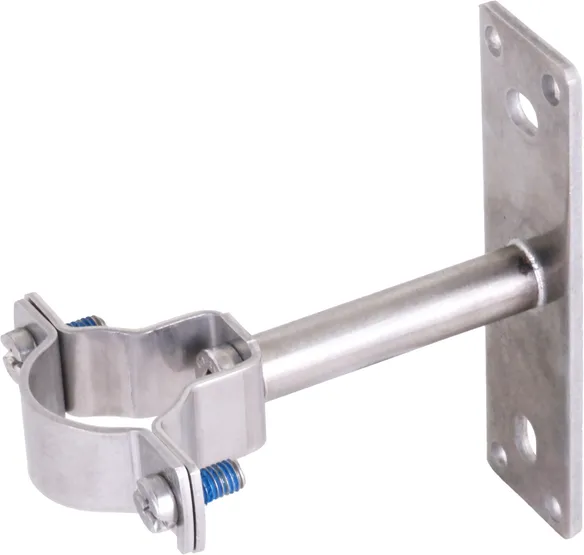

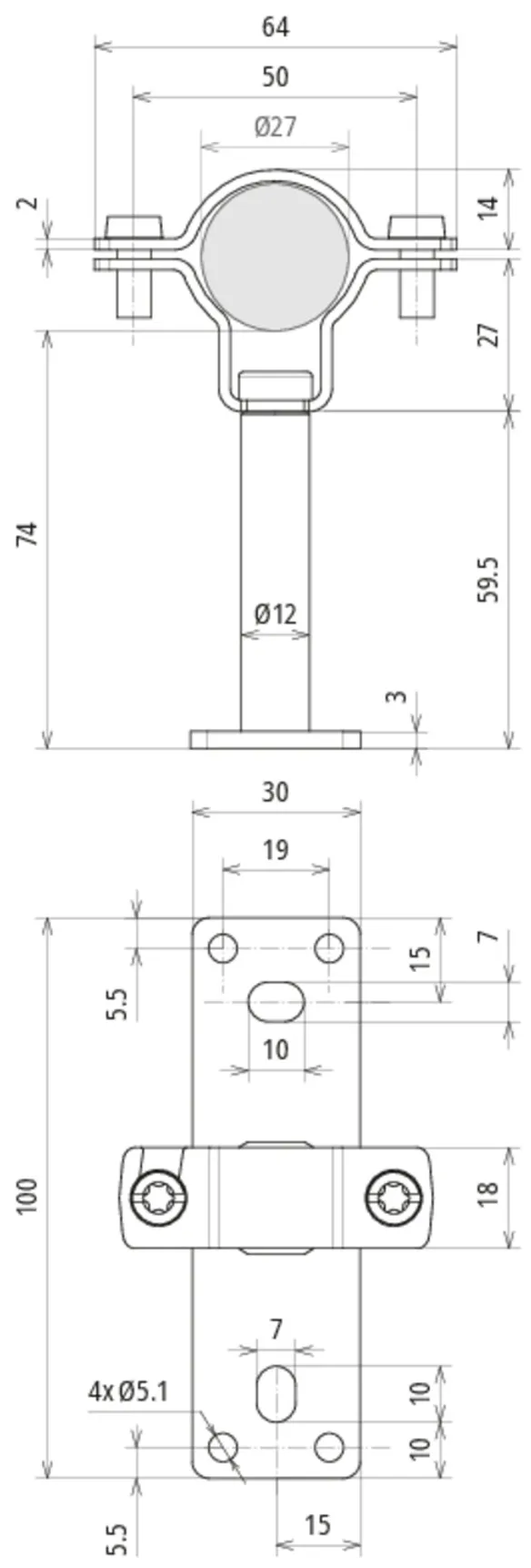

HVI ultra Ex W70 holder

1 Product

Part No. 275480 LH ZS 30 EX W70 BP V2A

GTIN 4013364518728, Customs tariff No. (EU): 85389099, Gross weight: 172.50 g, PU: 10.00 pc(s)

Images

Additional information

Conductor holder for HVI ultra Conductor in hazardous areas, StSt
Conductor holder for the HVI ultra Conductor
in hazardous areas with spacer
70 mm for fixing to
metal structural components
(façades) in Ex zones 1 and 21
Conductor support Rd: 27 mm
Fixing: [4x] Ø5.1 / [2x] 7 x 10 mm
Standard: DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Brand: DEHN
Type: LH ZS 30 EX W70 BP V2A
Part No.: 275480
or equivalent.

Certificates



Technical data

Material StSt
Conductor support Rd 27 mm
Distance from wall 70 mm
Fixing [4x] Ø5.1 / [2x] 7 x 10 mm
Standard DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Product 275480 was added to Notepad.

Go to Notepad

Product 275480 was added to the cart.

Go to Web-Shop

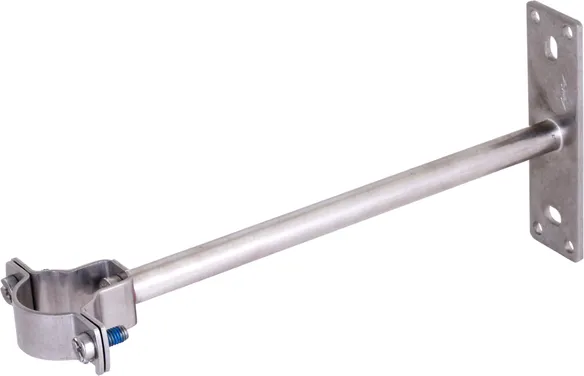

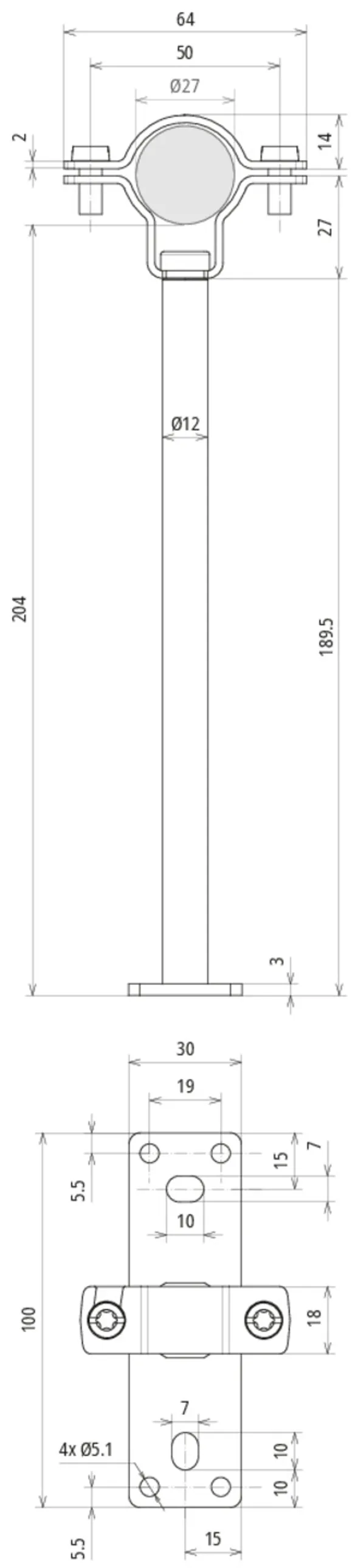

HVI ultra Ex W200 holder

1 Product

Part No. 275481 LH ZS 30 EX W200 BP V2A

GTIN 4013364518742, Customs tariff No. (EU): 85389099, Gross weight: 264.20 g, PU: 10.00 pc(s)

Images

Additional information

Conductor holder for HVI ultra Conductor in hazardous areas, StSt
Conductor holder for the HVI ultra Conductor
in hazardous areas with spacer
(200 mm), to be fixed to
metal structural components
(façades) in Ex zones 1 and 21
Conductor support Rd: 27 mm
Fixing: [4x] Ø5.1 / [2x] 7 x 10 mm
Standard: DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Brand: DEHN
Type: LH ZS 30 EX W200 BP V2A
Part No.: 275481
or equivalent.

Certificates



Technical data

Material StSt
Conductor support Rd 27 mm
Distance from wall 200 mm
Fixing [4x] Ø5.1 / [2x] 7 x 10 mm
Standard DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Product 275481 was added to Notepad.

Go to Notepad

Product 275481 was added to the cart.

Go to Web-Shop

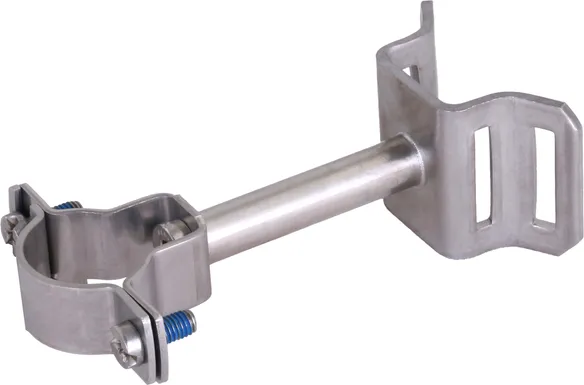

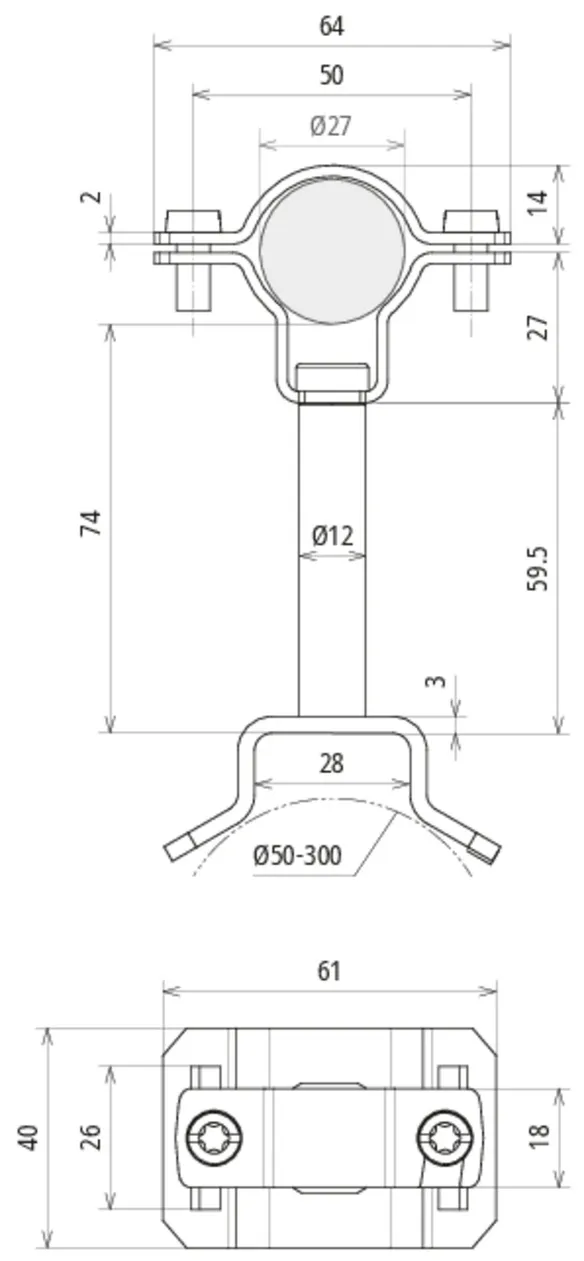

HVI ultra Ex P70 holder

1 Product

Part No. 275484 LH ZS 30 EX P70 SBB V2A

GTIN 4013364518759, Customs tariff No. (EU): 85389099, Gross weight: 177.20 g, PU: 10.00 pc(s)

Images

Additional information

Conductor holder for HVI ultra Conductor in hazardous areas, StSt
Conductor holder for the HVI ultra Conductor
in hazardous areas with spacer
70 mm for fixing to
round metal structural components
(metal chimneys) in Ex zones 1 and 21
Conductor support Rd: 27 mm
Standard: DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Brand: DEHN
Type: LH ZS 30 EX P70 SBB V2A
Part No.: 275484
or equivalent.

Certificates



Technical data

Material StSt
Conductor support Rd 27 mm
Distance from wall 70 mm
Standard DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Product 275484 was added to Notepad.

Go to Notepad

Product 275484 was added to the cart.

Go to Web-Shop

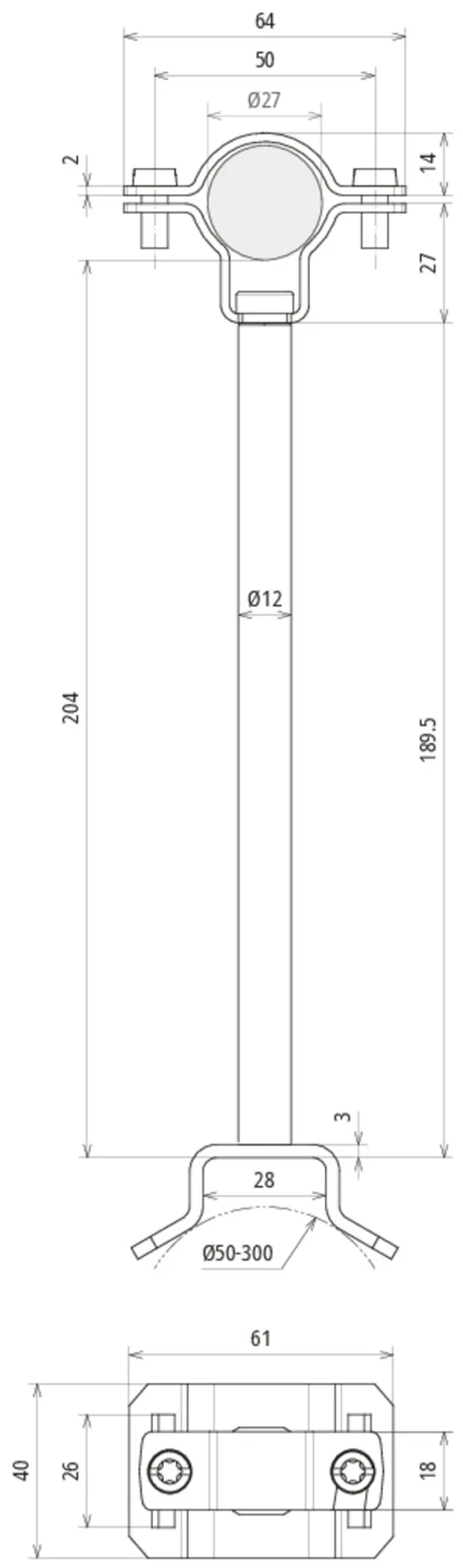

HVI ultra Ex P200 holder

1 Product

Part No. 275485 LH ZS 30 EX P200 SBB V2A

GTIN 4013364518735, Customs tariff No. (EU): 85389099, Gross weight: 269.00 g, PU: 10.00 pc(s)

Images

Additional information

Conductor holder for HVI ultra Conductor in hazardous areas, StSt
Conductor holder for the HVI ultra Conductor
in hazardous areas with spacer
(200 mm), to be fixed to
round metal structural components
(metal chimneys) in Ex zones 1 and 21
Conductor support Rd: 27 mm
Standard: DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Brand: DEHN
Type: LH ZS 30 EX P200 SBB V2A
Part No.: 275485
or equivalent.

Certificates



Technical data

Material StSt
Conductor support Rd 27 mm
Distance from wall 200 mm
Standard DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Product 275485 was added to Notepad.

Go to Notepad

Product 275485 was added to the cart.

Go to Web-Shop
