DCC

Resistant to currents as high as 100 kA (4/10 µs)
Fast value acquisition
Corrosion-resistant
Mechanically stable
Water-proof
Maintenance-free
Auxiliary contacts (remote signalling contacts) optionally available

DDC

4 Products

Part No. 994101 DCC 2

GTIN 4013364542181, Customs tariff No. (EU): 90303900, Gross weight: 1.68 kg, PU: 1.00 pc(s)

Images

Open PDF

Additional information

Technical data

six-digit

Register	six-digit
Min. sensitivity of the counting current	100 A (8/20 µs)
Max. high current resistance	100 kA (4/10 µs)
Voltage drop at 20 kA (8/20 µs)	1 kV s
Max. counting speed	5 counts per second
Housing material	powder-coated aluminium
Colour	grey
Earth-side connection	M12 threaded pin with two nuts StSt
Phase-side connection	M12 threaded pin with two nuts StSt
Housing attachment	rear lug / M12 or additional fixing angle

Product 994101 was added to Notepad.

Go to Notepad

Product 994101 was added to the cart.

Go to Web-Shop

Part No. 994102 DCC-M 2

GTIN 4013364542198, Customs tariff No. (EU): 90303900, Gross weight: 1.77 kg, PU: 1.00 pc(s)

Images

Open PDF

Additional information

Technical data

Register	six-digit
Measuring scale	0-30 mA_rms

Register	six-digit
Min. sensitivity of the counting current	100 A (8/20 µs)
Max. high current resistance	100 kA (4/10 µs)
Voltage drop at 20 kA (8/20 µs)	1 kV s
Measuring scale	0-30 mA_rms
Max. counting speed	5 counts per second
Housing material	powder-coated aluminium
Colour	grey
Earth-side connection	M12 threaded pin with two nuts StSt
Phase-side connection	M12 threaded pin with two nuts StSt
Housing attachment	rear lug / M12 or additional fixing angle

Product 994102 was added to Notepad.

Go to Notepad

Product 994102 was added to the cart.

Go to Web-Shop

Part No. 994104 DCC/RC 2

GTIN 4013364542204, Customs tariff No. (EU): 90303900, Gross weight: 1.73 kg, PU: 1.00 pc(s)

Images

Open PDF

Additional information

CAD files

<TRANSLATION_PLACEHOLDER>

Brand: DEHN
Type: DCC/RC 2
Part No.: 994104
or equivalent.

Technical data

six-digit

Register	six-digit
Min. sensitivity of the counting current	100 A (8/20 µs)
Max. high current resistance	100 kA (4/10 µs)
Voltage drop at 20 kA (8/20 µs)	1 kV s
Max. counting speed	5 counts per second
Housing material	powder-coated aluminium
Colour	grey
Earth-side connection	M12 threaded pin with two nuts StSt
Phase-side connection	M12 threaded pin with two nuts StSt
Housing attachment	rear lug / M12 or additional fixing angle
Type of remote signalling contact	make contact
Switching capacity (a.c.)	250 V / 0.5 A
Length of two-wire cable (make contact)	approx. 0.4 m

Product 994104 was added to Notepad.

Go to Notepad

Product 994104 was added to the cart.

Go to Web-Shop

Part No. 994105 DCC-M/RC 2

GTIN 4013364542211, Customs tariff No. (EU): 90303900, Gross weight: 1.81 kg, PU: 1.00 pc(s)

Images

Open PDF

Additional information

CAD files

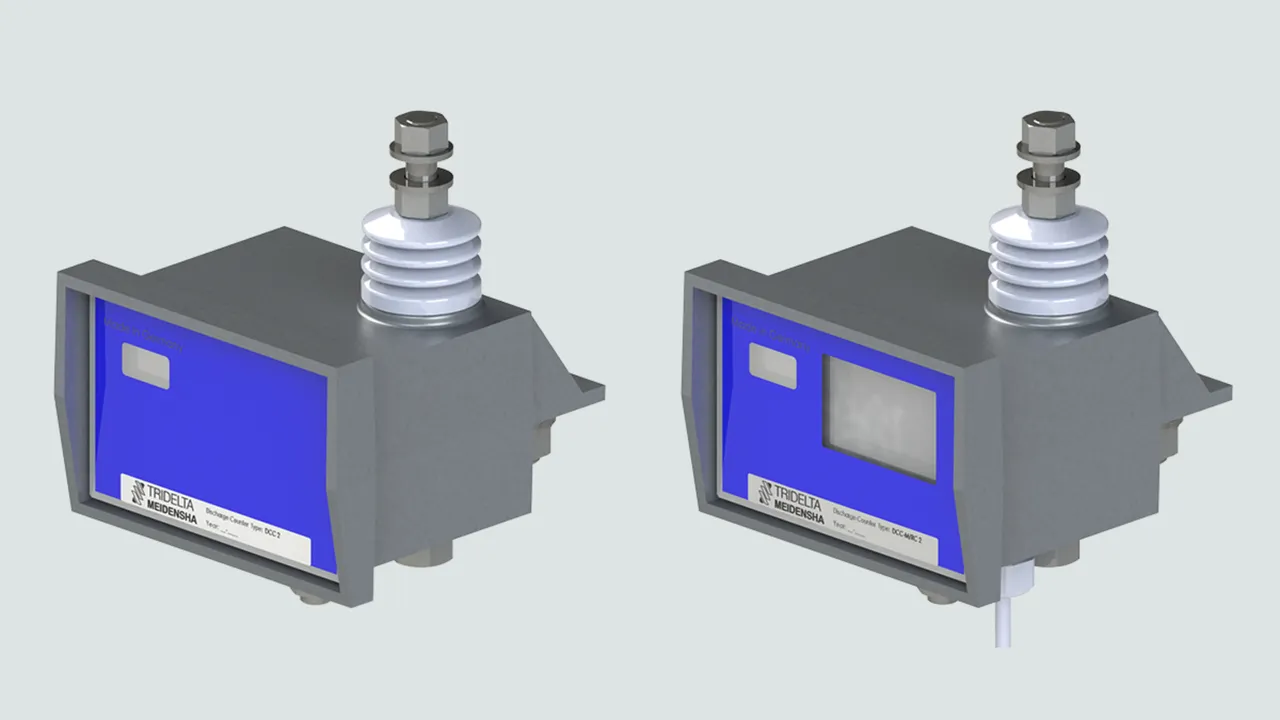

Impulse counter
with register and measuring scale for registering
discharge processes and the recording
leakage currents
Quick acquisition of values
Corrosion-resistant
Min. sensitivity: 100 A (8/20)
Max. high-current surge resistance: 100 kA (4/10)
Measuring scale: (0–21) mArms
Connection bolt: M12
Aluminium enclosure: IP 67; grey

Brand: DEHN
Type: DCC-M/RC 2
Part No.: 994105
or equivalent.

Technical data

Register	six-digit
Measuring scale	0-30 mA_rms

Register	six-digit
Min. sensitivity of the counting current	100 A (8/20 µs)
Max. high current resistance	100 kA (4/10 µs)
Voltage drop at 20 kA (8/20 µs)	1 kV s
Measuring scale	0-30 mA_rms
Max. counting speed	5 counts per second
Housing material	powder-coated aluminium
Colour	grey
Earth-side connection	M12 threaded pin with two nuts StSt
Phase-side connection	M12 threaded pin with two nuts StSt
Housing attachment	rear lug / M12 or additional fixing angle
Type of remote signalling contact	Make contact
Switching capacity (a.c.)	250 V / 0.5 A
Length of two-wire cable (make contact)	approx. 0.4 m

Product 994105 was added to Notepad.

Go to Notepad

Product 994105 was added to the cart.

Go to Web-Shop
