HVI ultra Conductor
:quality(98)/www.dehn.us/store/f/65448508/HDVORSCHAU/819836_16-9.jpg)
:quality(98)/www.dehn.us/store/f/65448508/HDVORSCHAU/819836_16-9.jpg)

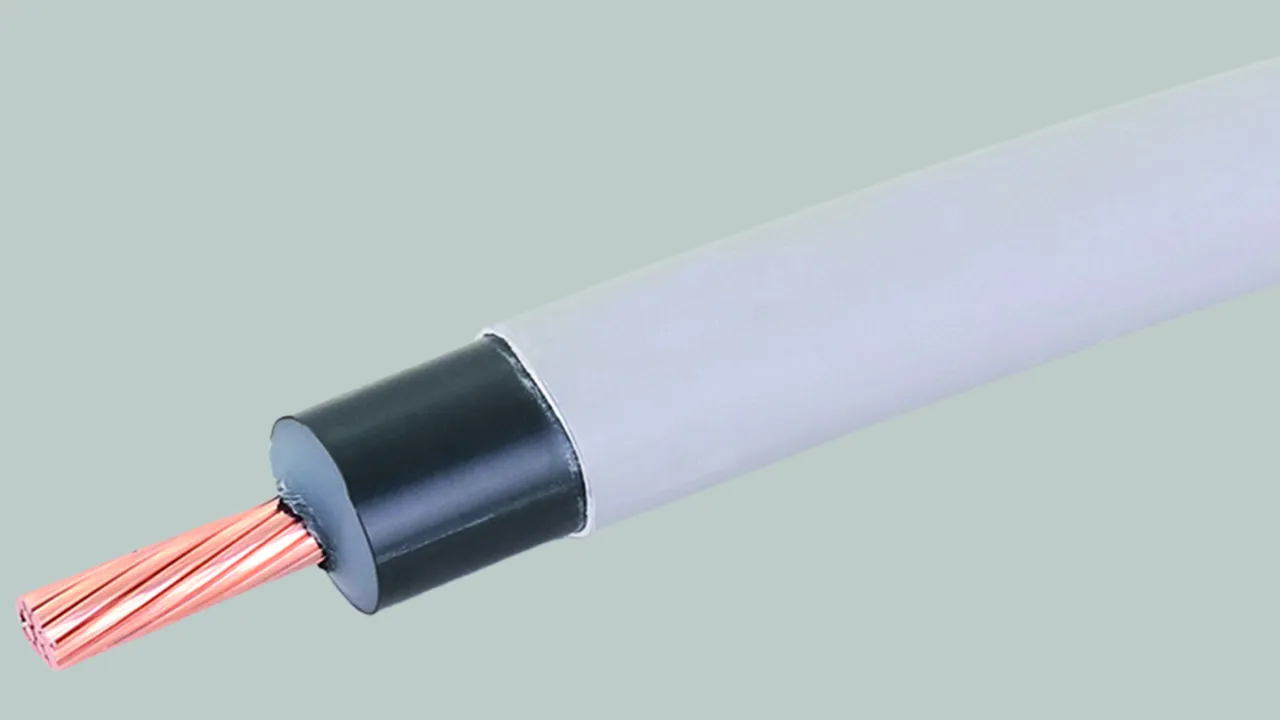

High-voltage-resistant, insulated down conductor for maintaining the separation distance from electrically conductive parts as per IEC 2305-3:2024. Furthermore, the inner conductor cross-section complies with NFPA 780.
For use up to an equivalent separation distance of s ≤ 75 cm (in air) or s ≤ 150 cm (solid building material).
The following maximum cable lengths therefore apply for the down conductor, depending on the class of lightning protection system (LPS):
LPS I max. 9.35 m
LPS II max. 12.50 m
LPS III/IV max. 18.75 m
The HVI ultra Conductor meets the requirements of IEC/TS 62561-8 (VDE V 0185-561-8).
For use up to an equivalent separation distance of s ≤ 75 cm (in air) or s ≤ 150 cm (solid building material).
The following maximum cable lengths therefore apply for the down conductor, depending on the class of lightning protection system (LPS):
LPS I max. 9.35 m
LPS II max. 12.50 m
LPS III/IV max. 18.75 m
The HVI ultra Conductor meets the requirements of IEC/TS 62561-8 (VDE V 0185-561-8).
Part No. 819836 HVI U 75 30 L100M GR M
GTIN 4013364512252, Customs tariff No. (EU): 85446010, Gross weight: 100.00 m/Stk, PU: 100.00 m

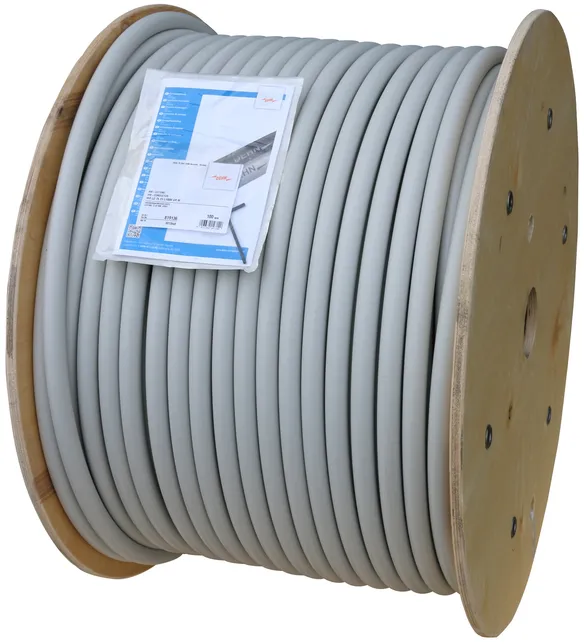

Images
:quality(98)/www.dehn.us/store/f/65448513/HDVORSCHAU/819136.jpg)
:quality(98)/www.dehn.us/store/f/65448513/HDVORSCHAU/819136.jpg)
Certificates
Technical data
| Material of conductor | Cu |
| Insulation material | PE |
| Sheath material | PE |
| Colour of conductor | grey ● |
| RAL colour | similar to 7036 |
| Cross-section of core (stranded) | 72 mm² |
| Lightning current carrying capability (Class / Iimp ) | 200 kA (300 kA application-related) |
| Equivalent separation distance [s] (in air) | ≤ 75 cm |
| Diameter Ø conductor (grey) | 30 mm |
| Coating characteristics | UV-stabilised and weather resistant |
| Standard | DIN IEC/TS 62561-8 (VDE V 0185-561-8), UL 758, based on UL 96 |
